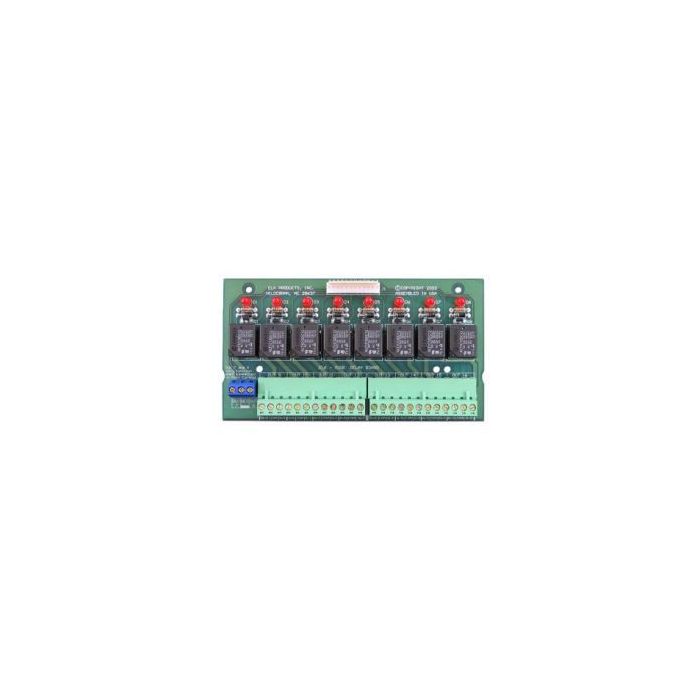

101-213 ELK M1RB 8 Relay Output Board
The 101-213 is the ELK M1RB output relay board for M1 controls and M1XOV or M1XOVR output expanders. It provides eight Form C SPDT dry-contact relays, plug-in removable terminal blocks, LED status indicators and a 12-conductor plug-in wire harness.
This board is useful when low-current M1 voltage outputs need to be converted into relay outputs for general-purpose switching. Its heavy-duty contact rating and dry-contact format help installers switch compatible AC or DC devices while keeping the M1 output logic organised.
Key Features
- Converts low-current M1 outputs into practical relay switching points
- Eight Form C SPDT relays support flexible normally open or normally closed wiring
- LED indicators help technicians see relay activity during testing
- Removable terminal blocks improve serviceability in panel enclosures
- Direct compatibility with M1 output expanders supports staged system growth
- Catalogue Family:
- PIRS
- Model:
- M1RB
- Relays:
- 8 Form C SPDT dry-contact relays
- Contact Rating:
- 12 A at 28 VDC or 125 VAC
- Operating Voltage:
- 12 V DC nominal
- Current Draw:
- 0 mA idle, 250 mA maximum
- Wire Harness Length:
- 600 mm
- Size:
- 152 x 82.5 x 19 mm
- Compatible Sources:
- M1 control, M1XOV or M1XOVR output expander
- Product Type:
- PIR Sensor
