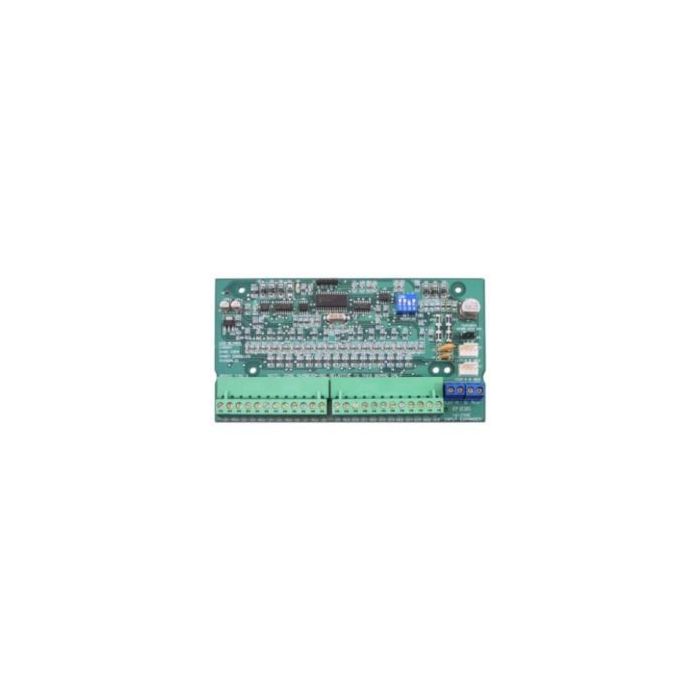

101-210 ELK M1XIN 16 Zone Input Expander
The 101-210 is the ELK M1XIN 16 zone input expander for M1 and M1G controls. It adds 16 hardwired EOL resistor supervised zones, operates on the 4-wire data bus and supports flash-memory firmware updating.
This expander is used where an M1 installation needs additional hardwired inputs beyond the main control board. Up to 12 M1XIN boards may be connected, increasing total supported zones to 208 when the system configuration allows it.
Key Features
- Adds 16 supervised hardwired zones to expand M1 input capacity
- 4-wire data bus operation supports integration with other M1 bus devices
- Address switches map zone ranges clearly across multiple expanders
- Plug-in terminal strips assist with serviceable field wiring
- Status and diagnostic LED helps with installation and troubleshooting
- Catalogue Family:
- PIRS
- Model:
- ELK-M1XIN
- Inputs:
- 16 EOL resistor supervised hardwired zones
- System Compatibility:
- M1 and M1G control
- Maximum Boards:
- Up to 12 M1XIN boards
- Expanded Zone Capacity:
- Up to 208 total zones
- Operating Power Range:
- 9 - 14 VDC
- Current Draw:
- 65 mA
- Bus Connection:
- 4-wire data bus
- Product Type:
- PIR Sensor
