101-212 ELK M1XOVR 8 Voltage and 8 Relay Output Expander

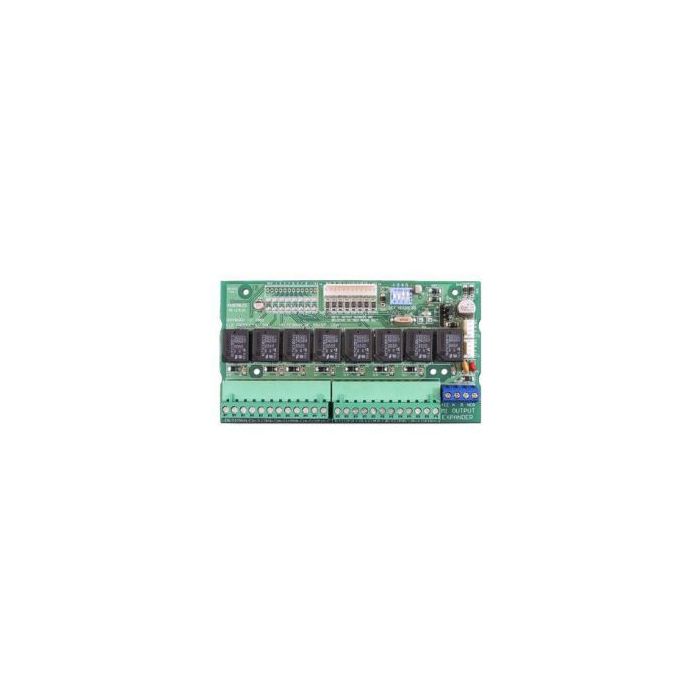

The 101-212 is the ELK M1XOVR output expander, adding eight voltage outputs and eight relay outputs to an M1 control. It operates on the 4-wire data bus, includes flash memory for firmware updating and supports expansion of the M1G system output count.
This module is useful where an M1 installation needs additional controlled outputs for automation, signalling or relay-driven devices. Its combination of low-current voltage outputs and SPDT relay outputs gives installers a flexible expansion path while keeping the board enrolled and addressed through the M1 data bus.
Key Features
- Adds both voltage and relay output capacity to the M1 control platform
- 4-wire data bus connection supports integration with existing M1 expansion wiring
- Address switches help map output ranges clearly during commissioning
- Diagnostic LED assists with service and setup checks
- Firmware-updatable design supports field maintenance of the expander board
- Catalogue Family:
- FOBS & CARDS
- Model:
- M1XOVR
- Outputs:
- 8 voltage outputs and 8 relay outputs
- Voltage Outputs:
- 12 VDC at 50 mA each
- Relay Outputs:
- SPDT rated for 5 A at 28 VDC
- Operating Power Range:
- 9 - 14 VDC
- Current Draw:
- 65 mA nominal, 330 mA maximum
- Wire Harness Length:
- 300 mm
- Size:
- 152 x 82.5 x 19 mm
- Bus Connection:
- 4-wire data bus
- Product Type:
- Card / Fob
