101-502 ELK M1KPNAV Navigator Touchscreen Keypad

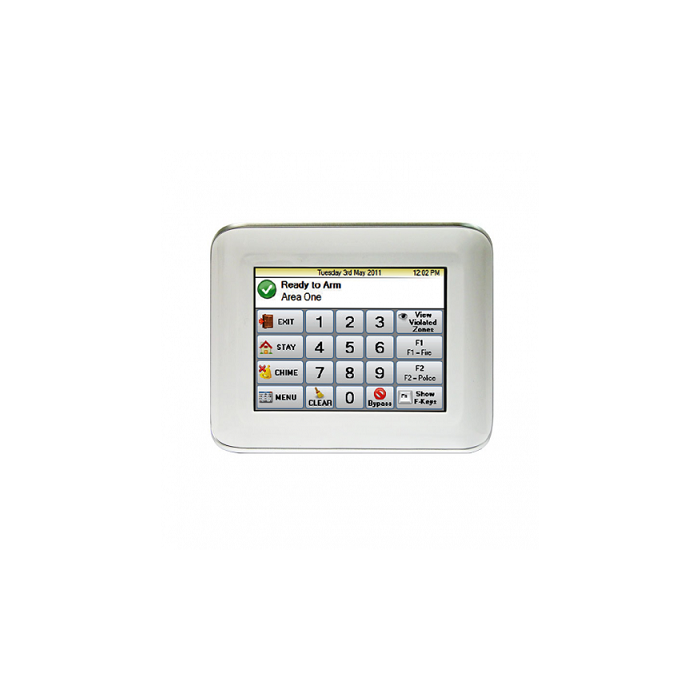

The 101-502 is the ELK-M1KPNAV Navigator touchscreen keypad for the M1 control system. It provides a 3.5 inch colour touchscreen, six programmable function keys, menu navigation, 4-wire RS485 data bus operation, a piezo sounder, one supervised zone input and one switched-positive voltage output.
Navigator is suited to M1 installations requiring a more graphical local interface than a standard LCD keypad. It supports new or retrofit installations, synchronises names from the panel and gives users an easier touch-based way to interact with areas, tasks, outputs and system status.
Key Features
- Colour touchscreen interface improves day-to-day operation of the M1 system
- Six programmable function keys provide quick access to site-specific actions
- RS485 data-bus connection suits new or retrofit M1 keypad wiring
- Synchronisation keeps keypad names aligned with panel programming
- Integrated zone input and voltage output add practical local interface flexibility
- Catalogue Family:
- PIRS
- Model:
- ELK-M1KPNAV
- Screen Size:
- 3.5 inch diagonal
- Resolution:
- 320 x 240 pixels, landscape
- Function Keys:
- 6 programmable function keys
- Connection:
- 6-pin plug-in flying lead cable
- Operating Voltage:
- 13.8 VDC
- Current Draw:
- Approx. 30 mA idle; approx. 55 mA fully active
- Dimensions:
- 4.25W x 3.38H x 0.59D inches
- Colour:
- Silver/White
- Product Type:
- PIR Sensor
