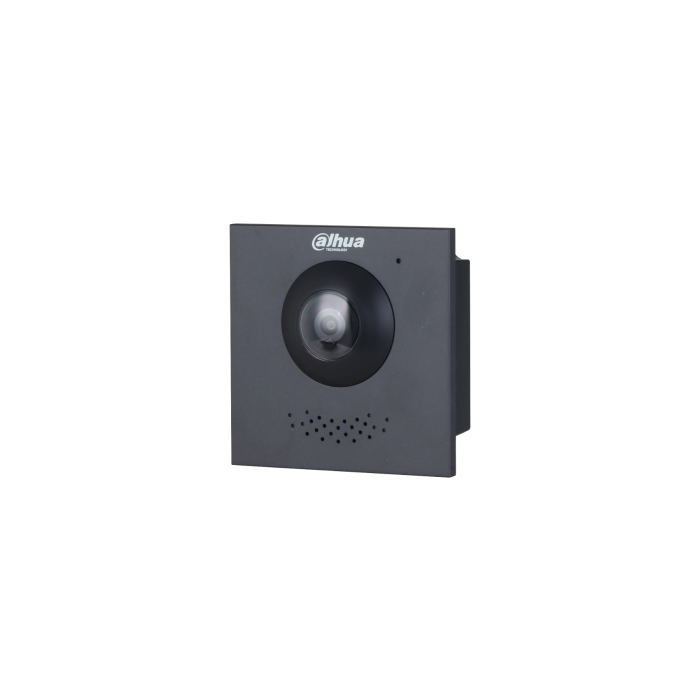

VTO4202FB-P-S3 2-Wire IP Modular Apartment Door Station Camera Module - Black
The VTO4202FB-P-S3 is a Dahua 2-wire IP modular apartment door station camera module with a 1/2.9-inch 2 MP CMOS camera, 120 dB WDR and H.265/H.264 video compression. It supports digital 2-wire communication, two-way audio, remote unlock and web configuration.
Designed for modular apartment or residential entry stations, the black aluminium module supports flush or surface mounting and combines network connectivity with lock, exit button and door status interfaces. IP65 and IK07 ratings are stated when installed as specified.
Key Features
- Adds the camera and audio core to a Dahua modular door station system.
- Supports wide-angle visitor viewing for apartment entry applications.
- Combines digital 2-wire communication with remote unlock capability.
- Provides a protected aluminium module for indoor or outdoor station builds.
- Suits modular projects that need flush or surface mounting flexibility.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTO4202FB-P-S3
- Product Type:
- Intercom
- Camera:
- 1/2.9-inch 2 MP CMOS
- Field of View:
- H: 168.6 deg; V: 87.1 deg; D: 176.7 deg
- WDR:
- 120 dB
- Communication Mode:
- Digital 2-wire
- Storage:
- micro SD card up to 256 GB
- Network Ports:
- 1 x RJ-45 10/100 Mbps
- Power Output:
- 1 port, 12 V/600 mA
- Material:
- Aluminium
- Colour:
- Black
- Installation:
- Flush mount; surface mount
- Dimensions:
- 100.0 x 100.0 x 49.4 mm
- Protection:
- IK07; IP65
- Operating Temperature:
- -30 C to +60 C
- Power Consumption:
- Standby up to 4 W; working up to 5 W
