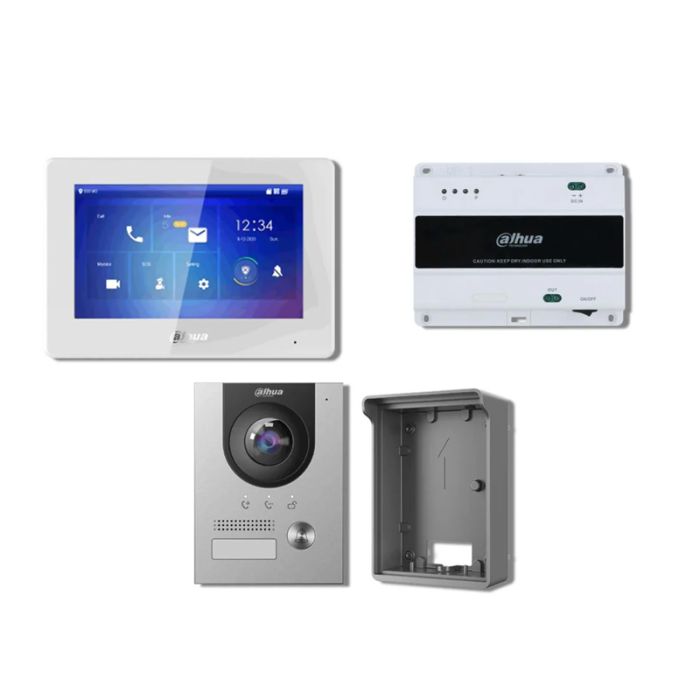

KTP2W Dahua 2-Wire Video Intercom IP Kit
The KTP2W is a Dahua 2-wire video intercom IP kit for residential and apartment intercom systems. It includes a 2-wire switch and a DHI-VTH2622G-W or DHI-VTH2622GW-W indoor monitor with a 7-inch TFT capacitive touchscreen, 1024 x 600 resolution, Wi-Fi connectivity, digital 2-wire communication, and two-way audio.
The 2-wire switch features one 2-wire P port, two 2-wire cascading ports, and two RJ-45 ports for compatible apartment or villa intercom system connections.
Key Features
- Supports a Dahua 2-wire intercom kit use case for residential projects.
- Pairs indoor monitor functions with 2-wire switch networking support.
- Helps villa and apartment projects connect monitors and door stations through a 2-wire architecture.
- Provides Wi-Fi and digital 2-wire monitor operation for flexible resident interaction.
- Keeps monitor and switch roles clear for selection.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Monitor Model:
- DHI-VTH2622G-W/DHI-VTH2622GW-W
- Monitor Display:
- 7-inch TFT capacitive touchscreen
- Monitor Resolution:
- 1024 x 600
- Monitor Communication:
- Digital 2-wire; Wi-Fi
- Monitor Alarm Input/Output:
- 6 alarm inputs; 1 alarm output
- Monitor Power Supply:
- 48 VDC 1.25 A
- Monitor Dimensions:
- 189.6 x 134.6 x 26.0 mm
- Switch Ports:
- 1 x 2-wire P port; 2 x 2-wire cascading ports; 2 x RJ-45 ports
- Single Switch Capacity:
- Up to 20 VTHs and 2 VTOs
