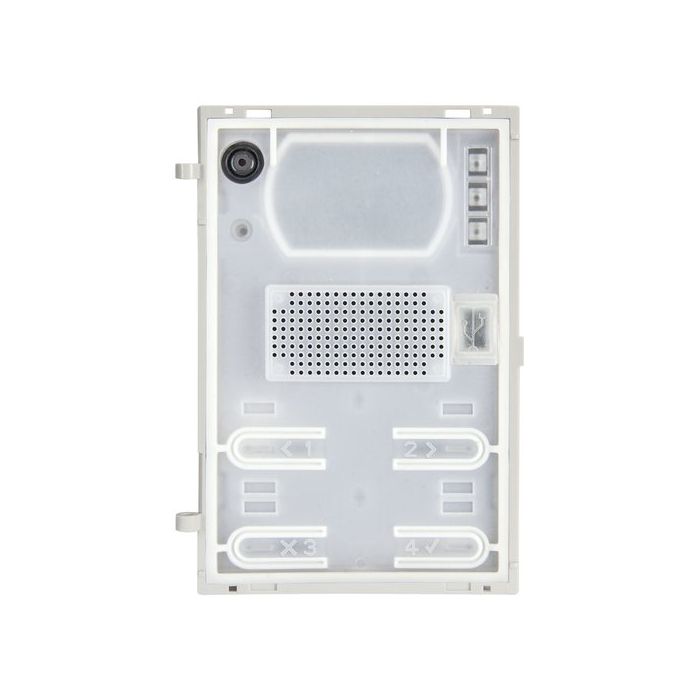

ELV41002 Due Fili Plus Audio Electronic Unit - 4 Call Buttons
The ELV41002 is a Due Fili Plus audio electronic unit for Pixel Series entrance panels, with input for a CCTV-type external camera. It provides full-duplex audio with echo suppression, automatic sound balancing, automatic microphone level control and four traditional call buttons for indoor stations.
This module is intended for Due Fili Plus audio entrance panel builds that need a compact electronic core with teleloop support, call status signalling and configurable inputs. It can be completed with an audio front cover and suitable single, double or fixed button modules to suit the required panel layout.
Key Features
- Gives Pixel entrance panels a supported Due Fili Plus audio control module.
- Audio processing functions help keep door conversations clear and consistent.
- Camera input capability allows the audio unit to be extended where video signal use is configured.
- Teleloop and signalling functions support more accessible visitor communication.
- Configurable inputs and lock output help adapt the module to common entrance panel requirements.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Panel Range:
- Pixel Series
- Installation Technique:
- Bus system
- Call Buttons:
- 4
- Model:
- Speak/ring
- Hearing Aid Compatible:
- Yes
- External Camera Input:
- 1 input
- Configurable Input:
- 1 input configurable as CA door opener or PA door open
- Lock Output:
- Direct opening output for electrical lock
- Listed Marks:
- CE Marking - EU; WEEE Directive
- Colour:
- White
- Device Type:
- 4 BUTTON AUDIO MODULE
- Display Size:
- None
- Mounting:
- Recessed Mount
- Power:
- POWER BY BUS CONTROLLER
- Series:
- PIXEL/ HEAVY DUE FILI+
- Solution:
- APARTMENT,COMMERCIAL
- Technology:
- 2-WIRE
