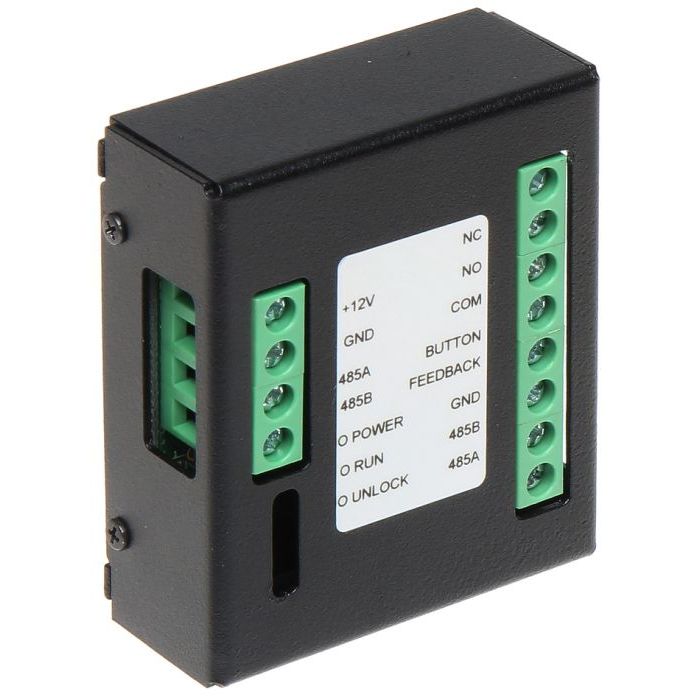

DEE1010B Intercom Auxiliary Relay Module
The DEE1010B is a Dahua intercom auxiliary relay module for access-control function extension. It provides lock NO output, lock NC output, open button support, door status detection, card swiping input and DC 12 V +/-10% power.
It is suited to intercom and access-control installations where an additional relay interface is needed for lock and button functions. Its compact 58 x 51 x 24.5 mm body and low standby consumption help fit it into auxiliary control spaces.
Key Features
- Adds auxiliary relay capability for intercom access-control functions
- Supports NO and NC lock output for common lock wiring approaches
- Open button and door status inputs help extend local control options
- Compact module size supports installation inside constrained equipment areas
- Low operating power helps keep the extension module efficient
- Catalogue Family:
- INTERCOM
- Model:
- DEE1010B
- Lock Outputs:
- NO and NC
- Open Button:
- Yes
- Door Status Detection:
- Yes
- Input:
- Card swiping input; card reader required
- Power:
- DC 12 V +/-10%
- Power Consumption:
- Standby ≤0.5 W; working ≤1 W
- Dimensions:
- 58 x 51 x 24.5 mm
- Weight:
- 0.56 kg
- Environment:
- -10°C to +60°C; 10-90% RH
- Product Type:
- Intercom
