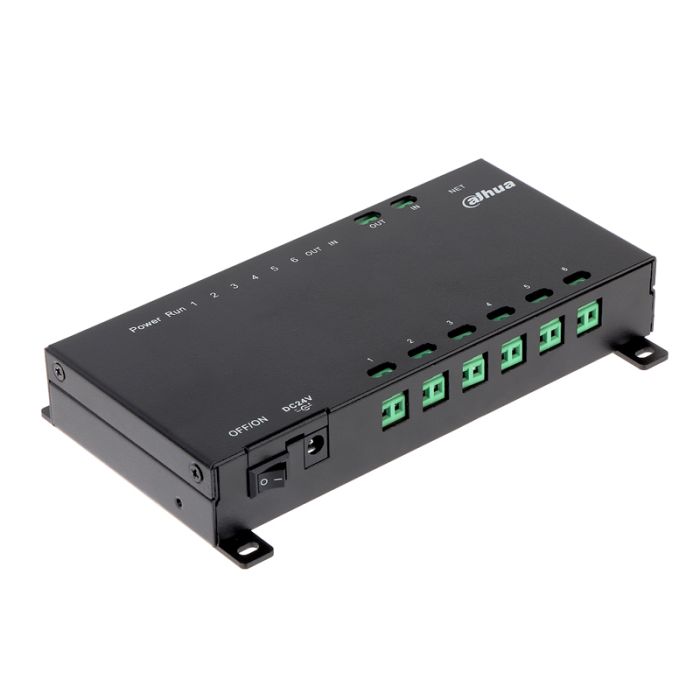

VTNS1006A-2 2-wire Apartment System Network Power Supply Switch
The VTNS1006A-2 is a Dahua network power supply switch for a 2-wire apartment intercom system. It transmits signal and power together and operates at 24 V, with a maximum power consumption of 80 W under full load and dimensions of 178 mm x 84.5 mm x 30 mm.
The switch distributes signal and power to compatible indoor monitors within a 2-wire intercom system.
Key Features
- Combines signal and power transfer for 2-wire intercom distribution
- Supports apartment-system layouts built around Dahua protocol switching
- Compact body helps fit the switch into riser or equipment areas
- 24 V operation supports clear power planning
- Full-load consumption figure helps size the supporting intercom power design
- Catalogue Family:
- INTERCOM
- Model:
- VTNS1006A-2
- System Role:
- Dahua protocol network power supply switch
- Voltage:
- 24 V
- Power Consumption:
- Maximum 80 W under full load
- Working Temperature:
- -10°C to +55°C
- Dimensions:
- 178 x 84.5 x 30 mm
- Weight:
- 0.6 kg
- Product Type:
- Intercom
