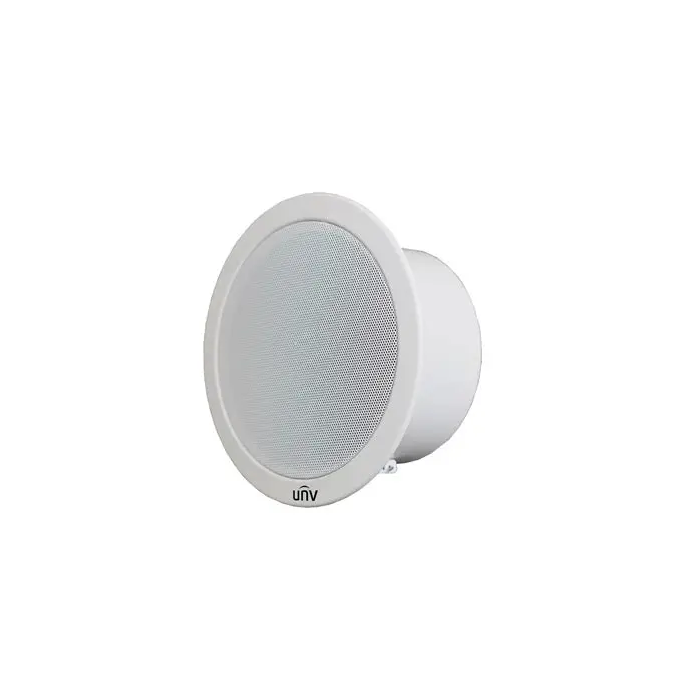

UNVIPS301015-S Uniview IPS301015-S 15W Ceiling IP Speaker with Built-In Microphone
The UNVIPS301015-S is a Uniview ceiling IP speaker with 15 W rated power, a built-in microphone and network audio support. It combines metal construction, 100 dBSPL maximum acoustic pressure, PoE or 12 V DC power, two-way audio, G.711U compression and custom audio file storage.
It is suited to public-address, alarm broadcast and video-audio linkage applications where a ceiling-mounted speaker can integrate with Uniview network systems. The RJ45 network interface and built-in storage support flexible broadcast workflows without relying only on live audio input.
Key Features
- Ceiling format suits discreet network speaker placement.
- PoE support can simplify cabling for audio points.
- Built-in microphone enables two-way audio use cases.
- Stored audio files support regular, live and alarm broadcast workflows.
- Network protocol support helps integrate the speaker with IP-based systems.
- Catalogue Family:
- POWER SUPPLY
- Model:
- IPS301015-S
- Speaker Type:
- Ceiling IP speaker
- Rated Power:
- 15 W
- Maximum Acoustic Pressure:
- 100 dBSPL
- Frequency Response:
- 100 Hz to 15 kHz
- Material:
- Metal
- Network Interface:
- 1 x RJ45 10/100 self-adaptive Ethernet
- Two-Way Audio:
- Support
- Audio File Storage:
- 64 MB
- Power Supply:
- PoE (IEEE 802.3af), DC 12 V/1.4 A
- Operating Temperature:
- -10 to 50 C
- Dimensions:
- 200 mm diameter x 95 mm; hole size 180 mm
- Product Type:
- Power Supply
