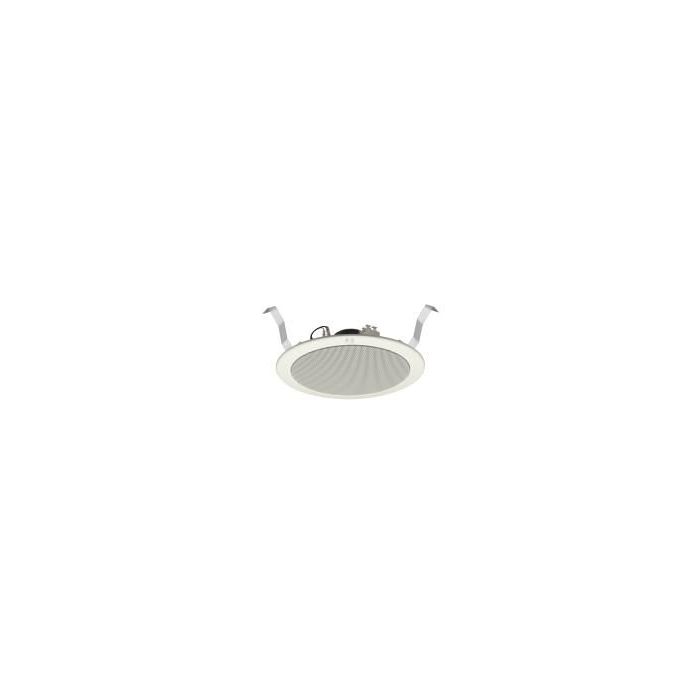

PC-2852 TOA 15W Two-Way Ceiling Mount Speaker
The PC-2852 is a TOA 15 W ceiling mount speaker with an integrated panel and a 20 cm 8 inch coaxial cone driver. It supports 100 V and 70 V line operation, uses a push-in connector and allows bridge wiring through the input terminal.
The all-metal construction and spring clamp mounting method are intended for voice alarm and public address ceiling installations where a clean appearance and faster fitting matter. Its 45 - 20,000 Hz response supports projects where speech and music are both part of the PA brief.
Key Features
- Coaxial 2-way driver supports broader programme audio than a basic paging speaker.
- Spring clamp installation helps reduce labour across repeated ceiling locations.
- Push-in terminal design supports efficient connection and bridge wiring.
- All-metal construction suits demanding public address and voice alarm projects.
- Off-white steel baffle and grille keep the finished installation visually restrained.
- Catalogue Family:
- SPEAKERS
- Model:
- PC-2852
- Rated Input:
- 15 W (100 V, 70 V LINE)
- Rated Impedance:
- 100 V LINE: 670 OHM (15 W), 1 KOHM (10 W), 2 KOHM (5 W), 3.3 KOHM (3 W); 70 V LINE: 330 OHM (15 W), 670 OHM (7.5 W), 1 KOHM (5 W), 2 KOHM (2.5 W), 3.3 KOHM (1.5 W)
- Sensitivity:
- 96 DB (1 W, 1 M, 500 - 5,000 HZ PINK NOISE)
- Frequency Response:
- 45 - 20,000 HZ AT 20 DB BELOW PEAK
- Speaker Component:
- 20 CM (8 INCH) COAXIAL CONE TYPE
- Mounting Hole:
- Diameter 250 +/-3 mm
- Ceiling Thickness:
- 5 - 25 mm
- Mounting Method:
- Spring clamp
- Finish:
- STEEL BAFFLE AND SURFACE-TREATED STEEL GRILLE NET, OFF-WHITE PAINT
- Dimensions:
- Diameter 280 x 92 D mm
- Weight:
- 1.6 kg
- Product Type:
- SPEAKERS
