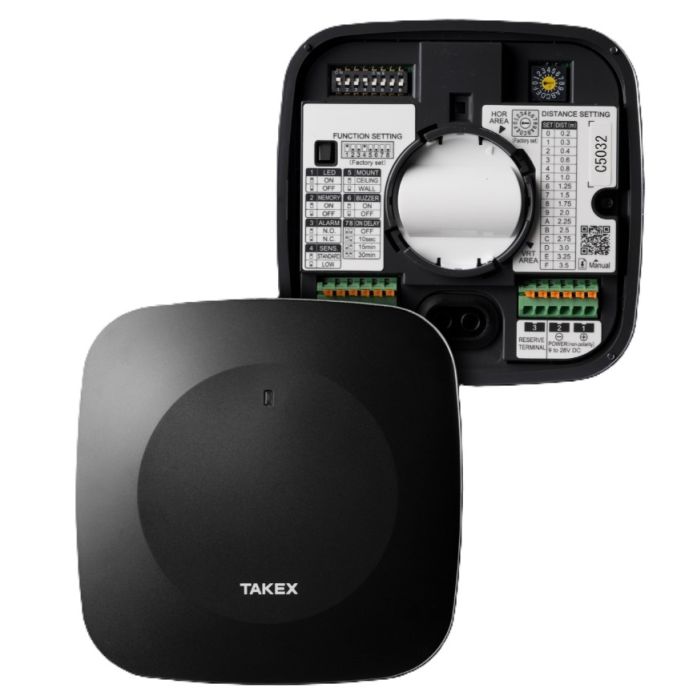

MMW-3W(BK) Presence Sensor 60GHz mmWave Radar Wide Black
The MMW-3W(BK) is the black wide-area version of the TAKEX 60GHz mmWave presence sensor. It uses millimetre-wave radar to detect fine human motion, including subtle breathing, across indoor ceiling or wall installations.
With adjustable detection up to 3.5 m and selectable alarm output, the sensor suits indoor security, monitoring and automation uses where a wide detection pattern and black housing are required. On-delay, distance, buzzer and tamper functions support practical tuning on site.
Key Features
- Adds wide-area presence sensing in a black housing for darker interior finishes.
- Detects subtle movement without depending on ambient light or temperature change.
- Allows distance and delay settings to be matched to the monitored space.
- Supports touchless activation where close-range control is required.
- Provides alarm, trouble and tamper outputs for connected systems.
- Catalogue Family:
- ALARM SENSOR
- Model:
- MMW-3W(BK)
- Area:
- Wide
- Appearance:
- Resin cover: black; main unit: grey
- Product Type:
- Alarm Sensor
- Frequency:
- 60GHz
- Supply Voltage:
- 9 V to 28 V DC, non-polarity
- Current Consumption:
- 40 mA max.
- Detection Distance:
- 3.5 m max.; 16 patterns
- Alarm Output:
- Dry contact N.C./N.O. selectable; continuous output during detection; 30 V DC/AC 0.2 A
- Trouble Output:
- Dry contact N.C.; output at low voltage or malfunction
- Tamper Output:
- Dry contact N.C.; output when cover is removed
- On-Delay Timer:
- None, 10 sec., 15 min., 30 min.
- Mounting:
- Indoor ceiling/wall
- Ambient Temperature:
- -25 degrees C to +50 degrees C without condensation
- Weight:
- 160 g
