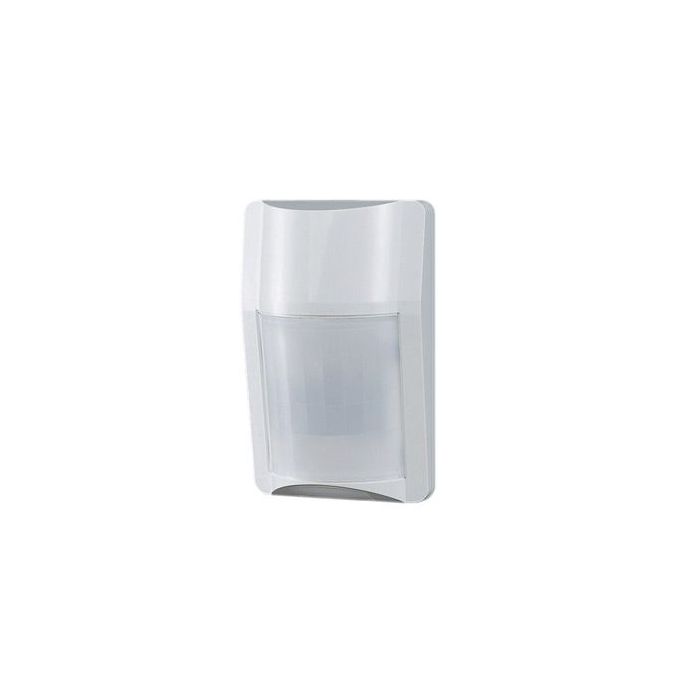

PA-450 Interceptor Passive Infrared Sensor - Wide Angle 11 m
The PA-450 is a TAKEX/PULNiX Interceptor passive infrared sensor with wide-angle coverage up to 35 ft (11 m). It uses a 4-bit onboard microprocessor, selectable pulse count and photo-mos FET alarm output in a compact indoor sensor body.
This model suits indoor detection points where installers need adjustable coverage, relay contact selection and alarm memory in a discreet PIR package. The creep-zone design helps cover the area directly below the sensor, while vertical coverage adjustment supports different mounting heights.
Key Features
- Provides wide-angle PIR coverage for indoor protected spaces up to 11 m.
- Helps reduce dead space below the unit with a dedicated creep-zone pattern.
- Allows two or four pulse-count selection to suit the application.
- Supports quiet solid-state alarm switching through photo-mos FET relay output.
- Offers alarm LED, memory and contact-changeover settings through the mode selector.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PA-450
- Product Type:
- Alarm Sensor
- Detection System:
- Passive infrared
- Coverage:
- Wide angle, 35 ft (11 m) max.
- Sensitive Zone:
- 18 pairs
- Supply Voltage:
- 9 V to 18 V DC, non-polarity
- Current Consumption:
- 25 mA max.
- Alarm Output:
- Dry contact semiconductor N.C./N.O. changeover; reset approx. 2 sec.; 24 V AC/DC 0.25 A max.
- Tamper Output:
- 0.1 A 30 V N.C.
- Pulse Count:
- 2/4 changeover
- Alarm Memory:
- Auto reset: 3 minutes flashing, 47 minutes lighting
- Ambient Temperature:
- -15 degrees C to +55 degrees C without condensation
- Mounting Position:
- Indoor use only; ceiling mount with optional BCW-401
- Weight:
- 120 g
- Appearance:
- ABS resin body; PE resin lens
