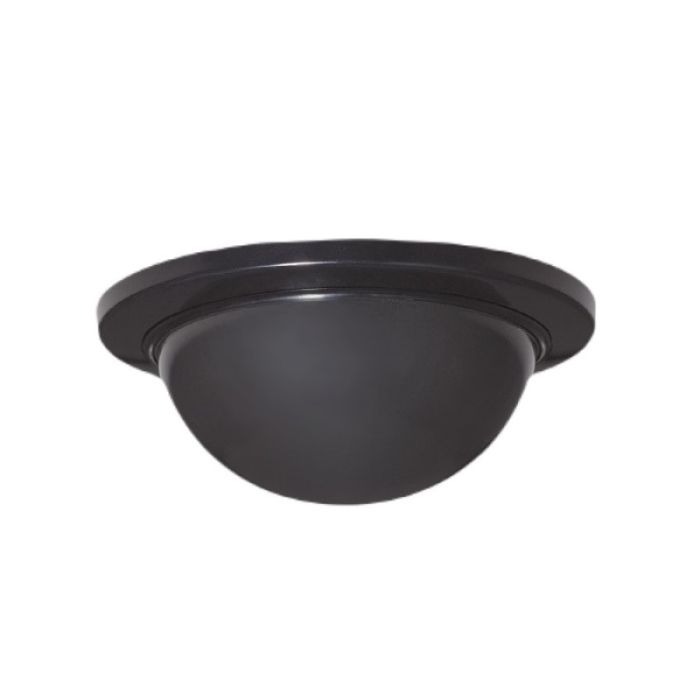

PA6812E-BLK Wide Angle Ceiling Mount PIR Detector - Black 12 m
The PA6812E-BLK is a black wide-angle ceiling mount PIR detector with a maximum detection range of 12 m. It features passive infrared detection, low-current 7 to 28 V DC operation, selectable alarm contact output, adjustable sensitivity, and pulse-count settings for indoor security applications.
Designed for indoor ceiling installations, the detector provides a wide-angle detection pattern in a compact housing with configurable operating parameters to suit a range of installation requirements.
Key Features
- Wide-angle passive infrared detection with up to 12 m coverage.
- Low current consumption of 11 mA maximum.
- Selectable sensitivity and pulse-count settings for application-specific adjustment.
- Solid-state alarm output with selectable N.O. or N.C. contact mode.
- Compact ceiling-mount design with black housing.
- Wiring:
- Hardwired
- Product Type:
- Alarm Sensor
