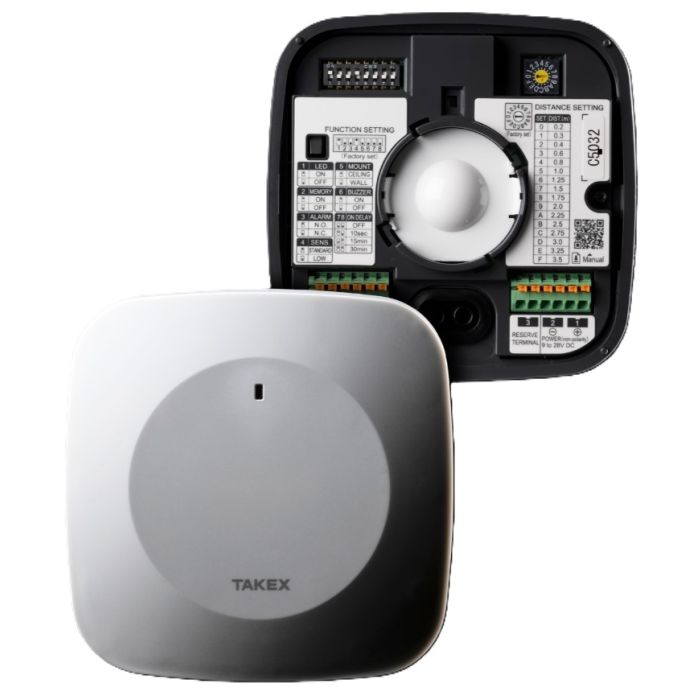

MMW-3W Presence Sensor 60GHz mmWave Radar Wide White
The MMW-3W is the wide-area version of the TAKEX 60GHz millimetre-wave presence sensor. It detects fine human motion, including subtle breathing, and provides adjustable detection up to 3.5 m for indoor ceiling or wall installations.
The wide detection pattern suits indoor monitoring, touchless control and automation applications where broader presence sensing is needed. Its selectable output format, on-delay timer, distance settings and screwless terminals help make integration and commissioning straightforward.
Key Features
- Covers a wider indoor detection area than the spot variant while keeping the same radar sensing platform.
- Supports reliable presence sensing for moving or stationary occupants.
- Helps reduce false triggers through adjustable distance and on-delay settings.
- Fits ceiling or wall mounting where a clean white housing is preferred.
- Connects to control systems through selectable dry-contact alarm output.
- Catalogue Family:
- ALARM SENSOR
- Model:
- MMW-3W
- Area:
- Wide
- Appearance:
- Resin cover: white; main unit: grey
- Product Type:
- Alarm Sensor
- Frequency:
- 60GHz
- Supply Voltage:
- 9 V to 28 V DC, non-polarity
- Current Consumption:
- 40 mA max.
- Detection Distance:
- 3.5 m max.; 16 patterns
- Alarm Output:
- Dry contact N.C./N.O. selectable; continuous output during detection; 30 V DC/AC 0.2 A
- Trouble Output:
- Dry contact N.C.; output at low voltage or malfunction
- Tamper Output:
- Dry contact N.C.; output when cover is removed
- On-Delay Timer:
- None, 10 sec., 15 min., 30 min.
- Mounting:
- Indoor ceiling/wall
- Ambient Temperature:
- -25 degrees C to +50 degrees C without condensation
- Weight:
- 160 g
