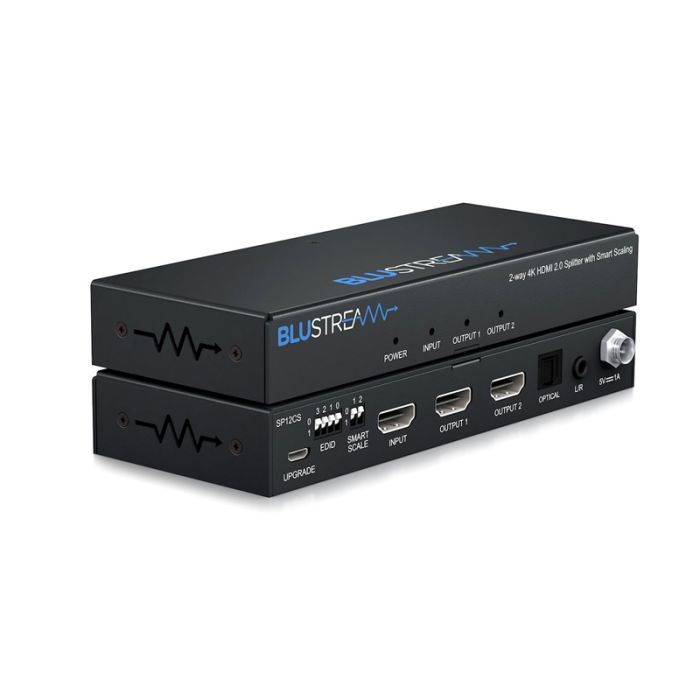

SP12CS 2-Way 4K HDMI 2.0 HDCP 2.2 Splitter
The SP12CS is a 2-way HDMI 2.0 splitter that replicates one HDMI source to two simultaneous HDMI outputs. It supports HDMI 2.0 18Gbps, HDCP 2.2 and video resolutions up to 4K UHD 60Hz 4:4:4, with automatic video down-conversion on each output.
Digital optical and analogue L/R audio breakout make the splitter useful where the same source needs to feed displays and an audio system. Smart Scaling and advanced EDID management help installers support mixed display capabilities without losing the original 4K path where it is available.
Key Features
- Splits one HDMI source to two displays while maintaining modern 4K support.
- Smart Scaling helps mixed-resolution displays operate in the same installation.
- Audio breakout supports external audio distribution without a separate extractor.
- EDID controls help stabilise source and display negotiation during setup.
- Compact form factor suits cabinets, display zones and small AV racks.
- Catalogue Family:
- POWER SUPPLY
- Model:
- SP12CS
- Product Type:
- Power Supply
- Video Input:
- 1 x HDMI Type A
- Video Outputs:
- 2 x HDMI Type A
- Video Support:
- HDMI 2.0 18Gbps, HDR and 4K UHD 60Hz 4:4:4
- Audio Outputs:
- 1 x optical digital and 1 x analogue L/R 3.5 mm
- EDID:
- 4-pin DIP switch
- Smart Scale:
- 2-pin DIP switch
- Dimensions:
- 158 x 64 x 23 mm
- Power Supply:
- 5 V/1 A DC
