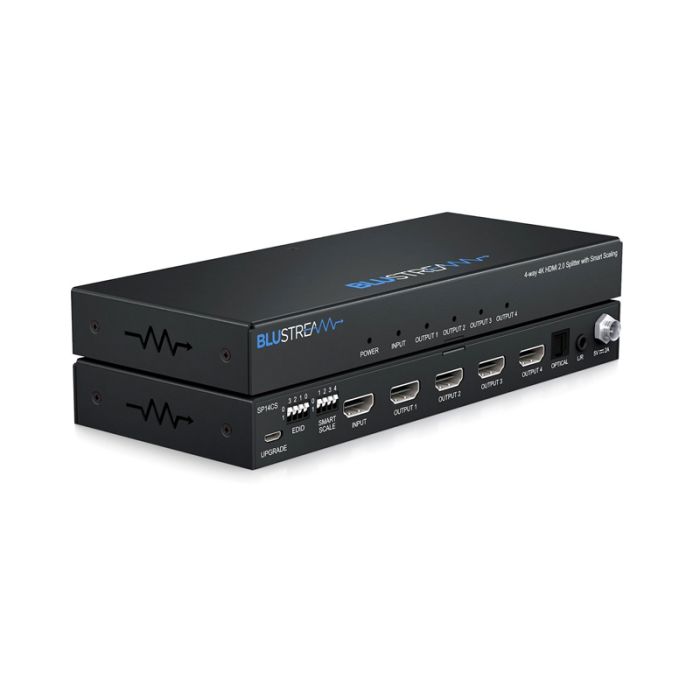

SP14CS 4-Way 4K HDMI 2.0 HDCP 2.2 Splitter
The SP14CS is a 4-way HDMI 2.0 splitter that distributes one HDMI source to four simultaneous HDMI outputs. It supports HDMI 2.0 18Gbps, HDCP 2.2 and up to 4K UHD 60Hz 4:4:4, with automatic down-conversion on each output.
The unit is practical for multi-display systems where the same source needs to feed several screens while also providing digital optical and analogue L/R audio breakout. Advanced EDID management and Smart Scaling support more predictable setup in mixed display environments.
Key Features
- Distributes one HDMI source to four displays for multi-screen AV installations.
- Smart Scaling supports mixed-resolution displays without overcomplicating setup.
- Audio breakout gives a clean path into external audio systems.
- EDID controls support reliable source-to-display negotiation across outputs.
- Compact splitter design helps simplify centralised source distribution.
- Catalogue Family:
- POWER SUPPLY
- Model:
- SP14CS
- Product Type:
- Power Supply
- Video Input:
- 1 x HDMI Type A
- Video Outputs:
- 4 x HDMI Type A
- Video Support:
- HDMI 2.0 18Gbps, HDR and 4K UHD 60Hz 4:4:4
- Audio Outputs:
- 1 x optical digital and 1 x analogue L/R 3.5 mm
- EDID:
- 4-pin DIP switch
- Smart Scale:
- 4-pin DIP switch
- Dimensions:
- 203 x 84 x 23 mm
- Power Supply:
- 5 V/2 A DC
