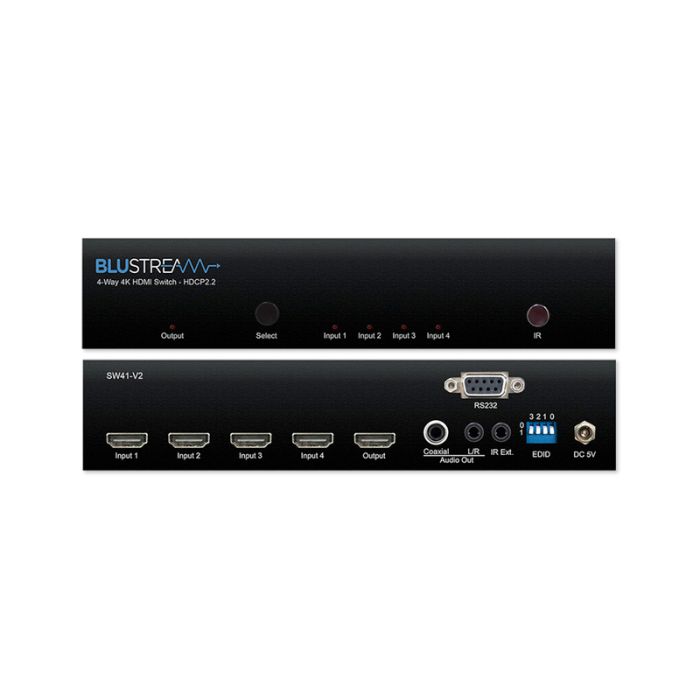

SW41AB-V2 4-Way HDMI 2.0 Switch with Audio Breakout
The SW41AB-V2 is a 4-way HDMI switch with integrated audio breakout and support for HDMI 2.0 and HDCP 2.2. It switches four HDMI inputs to a single HDMI output and supports video resolutions up to 4K @ 60Hz 4:4:4.
The switch is suited to AV systems that need several HDMI sources feeding one display or downstream device. Front panel, RS-232 and IR control, advanced EDID management and concurrent analogue/coaxial audio breakout give installers useful control and audio-routing options.
Key Features
- Combines four HDMI sources into one controlled output path for simpler display integration.
- Audio breakout helps feed external audio systems without adding a separate extractor.
- Selectable auto-switching can reduce day-to-day source selection effort.
- Control options support both local use and integration with automation systems.
- EDID management helps stabilise source and display behaviour during installation.
- Catalogue Family:
- POWER SUPPLY
- Model:
- SW41AB-V2
- Product Type:
- Power Supply
- Video Inputs:
- 4 x HDMI Type A
- Video Output:
- 1 x HDMI Type A
- Video Support:
- HDMI 2.0, HDCP 2.2 and 4K @ 60Hz 4:4:4
- Audio Outputs:
- 1 x RCA S/PDIF and 1 x analogue audio output
- Control:
- Front panel, RS-232 and IR
- Dimensions:
- 196 x 94 x 41 mm
- Power Supply:
- 5 V/2 A DC screw connector
- Operating Temperature:
- 0°C to 40°C
