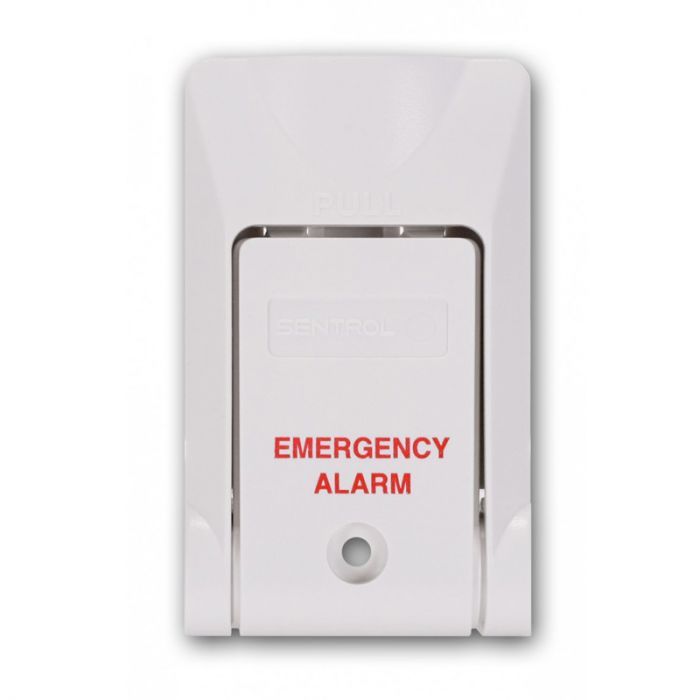

3045 Sentrol Non-LED Panic Switch
The 3045 is a Sentrol 3040 Series panic switch without an LED or latching circuit. It uses a closed-loop SPST configuration and activates the alarm switch when the actuating lever is pulled.
This model suits residential or commercial panic alarm locations where a simple non-LED surface-mount switch is required. It is designed for mounting under desks, counters or other discreet positions where manual activation needs to stay within easy reach.
Key Features
- Simple non-LED design suits straightforward panic switch applications
- Pull-lever operation supports intentional manual duress activation
- Closed-loop SPST configuration provides a defined alarm circuit format
- Compact ABS housing helps keep the switch discreet but accessible
- Surface-mount installation supports placement under counters and desks
- Catalogue Family:
- ALARM SWITCH
- Product Type:
- Alarm Switch
- Model:
- 3045
- Latching LED:
- None
- Loop Type:
- Closed
- Electrical Configuration:
- SPST
- Voltage:
- 100 VDC maximum
- Current:
- 0.5 A maximum
- Power:
- 7.5 W maximum
- Temperature Range:
- -40°C to 65.6°C
- Dimensions:
- 1.77 x 2.90 x 0.76 in. (4.50 x 7.37 x 1.93 cm)
- Weight:
- 1.5 oz.
- Housing Material:
- ABS plastic
- Colour:
- White
