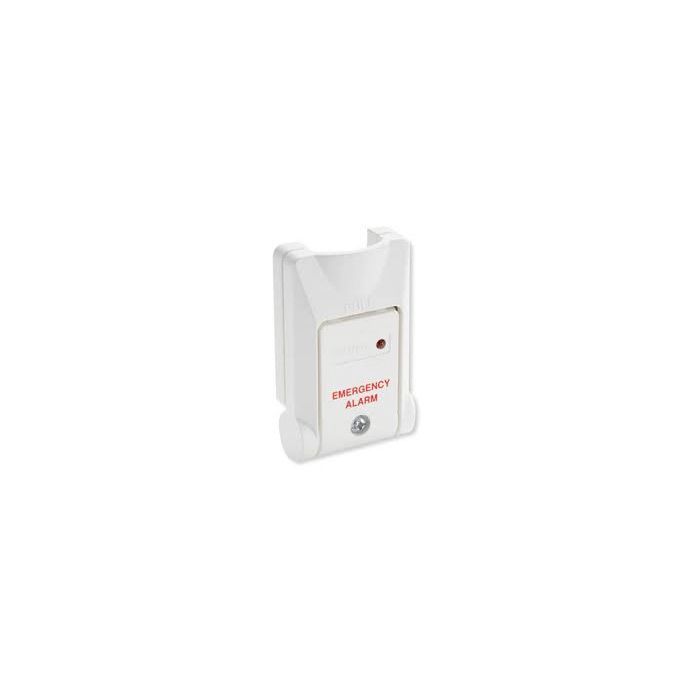

3040 Sentrol Latching LED Panic Switch
The 3040 is a Sentrol 3040 Series panic switch with a red latching LED and SPDT open-or-closed loop configuration. It activates when the user pulls the actuating lever, with the LED latching to indicate that the alarm circuit has been activated.
Designed for manual alarm activation, it can be mounted out of sight but within reach under desks or counters in facilities where people or property may be at risk. The low-profile ABS housing and surface-mount format support discreet placement for duress and panic alarm applications.
Key Features
- Latching red LED gives a clear local indication after activation
- Pull-lever actuation supports deliberate manual panic signalling
- SPDT open-or-closed loop options suit flexible alarm panel wiring
- Low-profile surface-mount body helps place the switch discreetly within reach
- External reset through the host panel supports controlled alarm restoration
- Catalogue Family:
- ALARM SWITCH
- Product Type:
- Alarm Switch
- Model:
- 3040
- Latching LED:
- Red, yes
- Loop Type:
- Open or closed
- Electrical Configuration:
- SPDT
- Nominal Voltage:
- 12 VDC at 6 mA
- Operational Voltage:
- 7-15 VDC
- Current:
- 8 mA maximum
- Form C Rating:
- 30 VDC maximum, 0.25 A maximum, 3 W maximum
- Operating Temperature:
- -17.8 deg C to 43.3 deg C
- Dimensions:
- 1.77 x 2.90 x 0.76 in. (4.50 x 7.37 x 1.93 cm)
- Housing Material:
- ABS plastic
- Colour:
- White
