GM760 Vanderbilt Seismic Detector

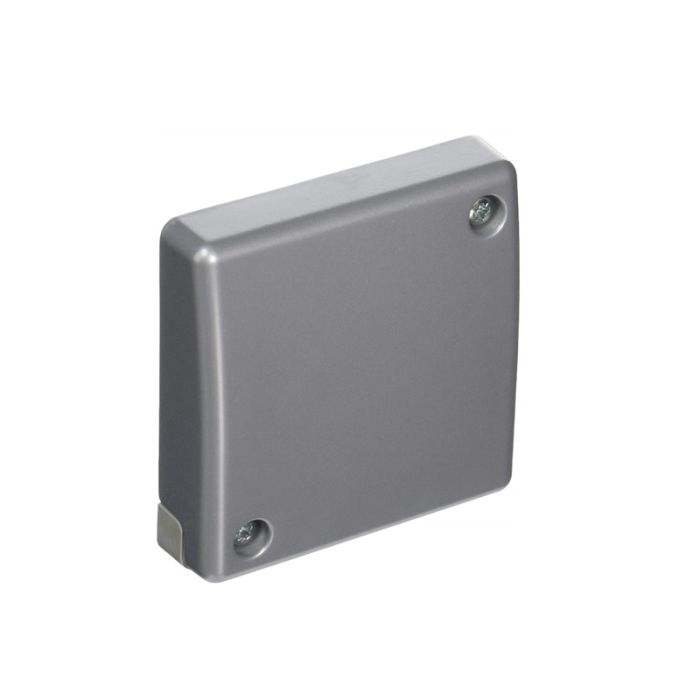

The GM760 is a Vanderbilt GM7xx-series seismic detector for safes, vaults, ATMs, night deposits and modular strongrooms. It uses Senstec sensor technology and digital signal processing to detect attack vibrations while distinguishing them from ambient noise.
This model is the all-purpose unit in the GM7xx range and is suited to steel, concrete and lightweight synthetic protected structures. Adjustable sensitivity, PC software configuration and low power consumption support commissioning across different high-security applications.
Key Features
- Supports seismic protection across concrete, steel and lightweight synthetic structures
- Detects vibration patterns from common forced-entry attack tools
- Adjustable sensitivity helps match the detector to the protected material
- Cover and surface tamper contacts support security-system supervision
- Software configuration support helps installers tune and monitor performance
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Concrete Coverage:
- 5 m operating radius / 80 m2
- Steel and Lightweight Synthetic Coverage:
- 2 m operating radius / 12 m2
- Power Supply:
- 8-16 VDC, nominal 12 VDC
- Power Consumption:
- 2.5-3.5 mA typical; 5 mA maximum
- Alarm Relay:
- 30 VDC / 100 mA
- Alarm Hold Time:
- Approx. 2.5 s
- Operating Temperature:
- -40°C to 70°C
- Housing Protection:
- IP43
- Dimensions:
- 89 x 89 x 22 mm
- Weight:
- 0.285 kg
