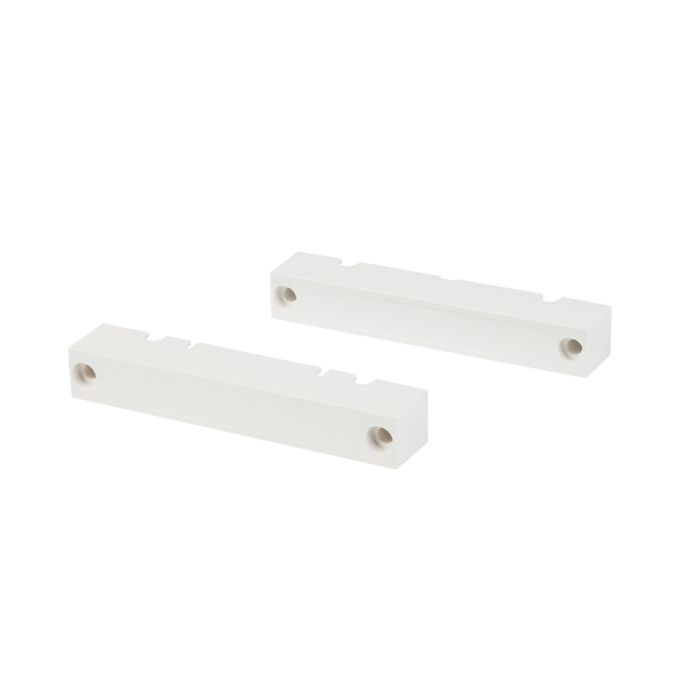

1045T Sentrol Surface-Mount Magnetic Contact with Screw Terminals
The 1045T is a Sentrol 1045T Series surface-mount magnetic contact with screw terminals. It is a closed-loop Form A model with concealed terminals, external test points and a wide make distance for easier alignment on protected openings.
The contact is aimed at industrial and commercial openings such as metal entry or exit doors, overhead doors, roof hatches and hinged skylights. Screw terminals support serviceable wiring while the flame-retardant ABS housing provides a defined surface-mounted reed contact format.
Key Features
- Screw terminals support faster connection and easier service access
- Wide-gap operation helps accommodate door movement and installation tolerance
- External test points allow checking without disturbing the wiring termination
- Concealed terminals help reduce accidental shorting and casual tampering
- Surface-mount design suits metal doors and other openings where recessed fitting is not preferred
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Loop Type:
- Closed
- Electrical Configuration:
- N.O.
- Voltage:
- 100 V AC/DC maximum
- Current:
- 0.5 A maximum
- Power:
- 7.5 W maximum
- Gap Distance:
- 1 1/4 in. nominal make
- Lead Type:
- #6 screw terminal
- Housing Dimensions:
- 3.9 x 0.6 x 0.7 in. (9.91 x 1.52 x 1.78 cm)
- Housing Material:
- Flame-retardant ABS plastic
- Listings:
- UL, ULC
