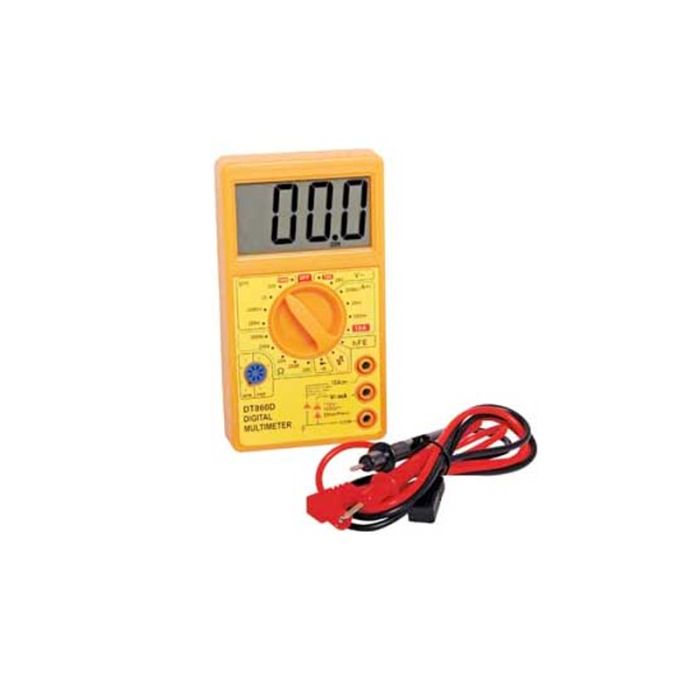

Q1053B 19 Range Digital Multimeter
Q1053B is a 19-range digital multimeter with DC and AC voltage measurement, DC current measurement, resistance measurement, diode testing, transistor hFE testing, and an audible continuity buzzer.
Features a 3.5 digit display and includes test leads and a 9V battery.
Key Features
- 19 measurement ranges.
- Audible continuity buzzer.
- Diode and transistor hFE test functions.
- Jumbo 3.5 digit display.
- Includes test leads and 9V battery.
- Catalogue Family:
- TOOLS & INSTALLATION ACCESSORIES
- Product Type:
- Tools & Installation Accessories
- Model:
- Q1053B
- DC Voltage Ranges:
- 200mV, 2V, 20V, 200V, 1000V
- AC Voltage Ranges:
- 200V, 750V
- DC Current Ranges:
- 2000 microA, 20mA, 200mA, 10A
- Resistance Ranges:
- 200 ohm, 2k ohm, 20k ohm, 200k ohm, 2M ohm
- Display:
- 3.5 digit LCD, 1999 count
- Protection:
- 500mA M205 fused on all inputs except 10A range
- Dimensions:
- Approx. 68W x 24D x 125H mm
- Included:
- Test leads and 9V battery
- Safety Category:
- Cat II 500V
