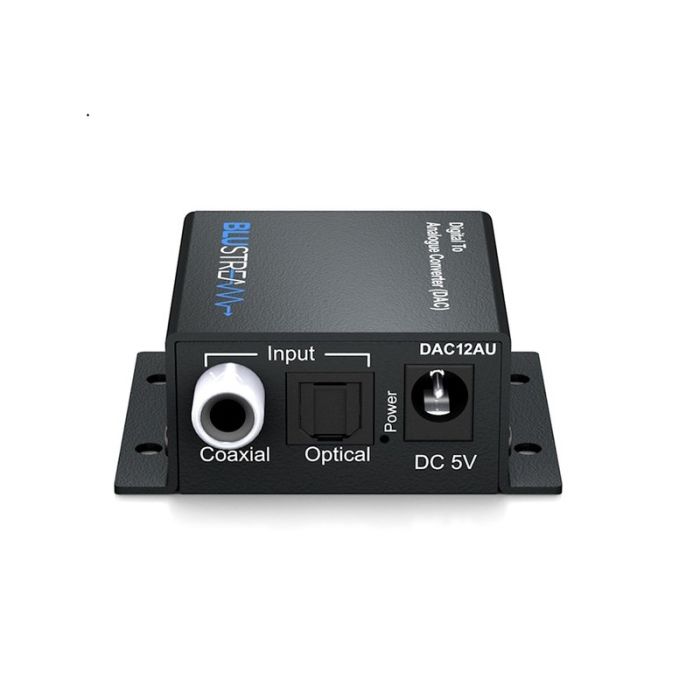

DAC12AU Digital to Analogue Audio Converter
The DAC12AU converts optical or coaxial digital audio to analogue stereo left/right audio. It also converts optical digital audio input to coaxial digital audio output, with optical input priority and auto-detection of the digital connection in use.
The compact converter is suitable where a TV, source or processor provides digital audio but the downstream amplifier or zone requires analogue stereo. Concurrent coaxial digital and analogue L/R outputs give installers a straightforward way to support mixed audio paths.
Key Features
- Converts digital audio to analogue stereo for equipment with legacy audio inputs.
- Optical-to-coaxial conversion adds flexibility where digital connection types differ.
- Automatic input detection keeps day-to-day operation simple after installation.
- Concurrent outputs help support both analogue and digital downstream devices.
- Compact housing and plug-and-play setup suit discreet AV cabinet installation.
- Catalogue Family:
- POWER SUPPLY
- Model:
- DAC12AU
- Product Type:
- Power Supply
- Audio Inputs:
- 1 x optical digital and 1 x coaxial RCA S/PDIF
- Audio Outputs:
- 2 x analogue stereo left/right and 1 x coaxial RCA S/PDIF
- Sample Rates:
- 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit
- Dimensions:
- 50 x 26 x 42 mm
- Shipping Weight:
- 0.4 kg
- Power Supply:
- 5 V/1 A DC barrel connector
- Operating Temperature:
- 0°C to 40°C
- Regulatory Reference:
- CAN ICES-3 (B)/NMB-3(B)
