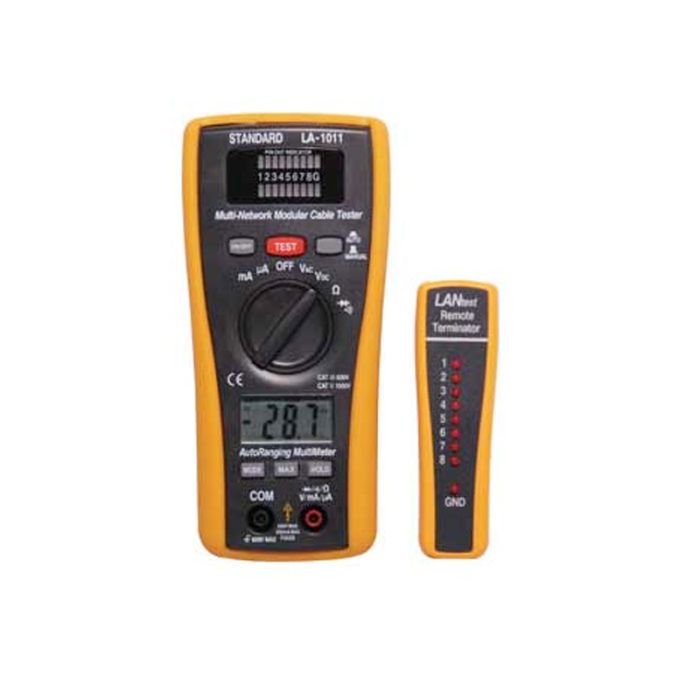

D3020 Combination Digital Multimeter and LAN Tester
The D3020 is a combination digital multimeter and LAN tester for electrical measurements and network cable testing. It features autoranging multimeter functions, RJ45 sockets for Ethernet cable testing, a remote terminator, and RJ/BNC network cable adaptors.
Designed for network installers and IT technicians, it combines voltage, current, resistance, and continuity measurement with LAN cable testing. The LAN tester supports RJ45, RJ11, and BNC cable testing, while the multimeter includes data hold, maximum value recall, and a backlit display.
Key Features
- Combines digital multimeter and LAN cable tester functions in a single handheld instrument.
- Remote terminator enables testing of installed network cables.
- Autoranging operation simplifies voltage, current, and resistance measurements.
- RJ and BNC adaptors support testing of multiple cable types.
- Supplied with a carry case and test leads for convenient transport and use.
- Catalogue Family:
- INSTALLATION TOOLS
- Manufacturer Model:
- D3020
- Product Type:
- Installation Tools
- DC Voltage Ranges:
- 200 mV, 2 V, 20 V, 200 V, 600 V
- AC Voltage Ranges:
- 2 V, 20 V, 200 V, 600 V
- DC Current Ranges:
- 200 µA, 2000 µA, 20 mA, 200 mA
- AC Current Ranges:
- 200 mA, 2000 A, m20 mA, 200 mA
- Resistance Ranges:
- 200 Ω to 20 MΩ
- Continuity:
- Audible tone below 150 Ω
- Display:
- 3.5-digit LCD, 2000-count, backlit
- LAN Test Support:
- 10Base-T, 10Base-2, RJ45/RJ11, 258A, TIA-568A/TIA-568B, and Token Ring
- Safety Category:
- CAT II 1000 V / CAT III 600 V
- Dimensions:
- Approx. 75 x 44 x 162 mm (excluding remote terminator)
