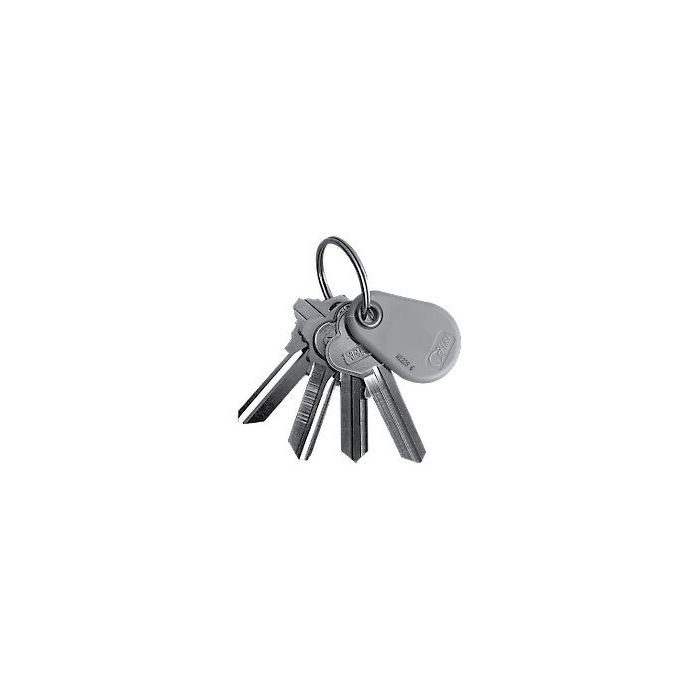

PSK3 PSK-3 Pyramid Series Proximity Key Ring Tag
The PSK-3 is a Pyramid Series proximity key ring tag using 125 kHz passive RFID technology. It provides Wiegand output interface support, a grey ABS body, standard reinforced brass eyelet and a read range up to 3.5 inches or 88 mm.
This credential suits access control applications for doors, parking and turnstiles where a compact key tag is preferred over a card. It requires no battery, supports Pyramid Series proximity readers and includes the MAXSecure security feature and a limited lifetime warranty.
Key Features
- Key-ring tag format is convenient for everyday access-control users
- Passive 125 kHz operation removes the need for credential battery maintenance
- Wiegand format support suits common access-control system interfaces
- Reinforced brass eyelet supports attachment to key rings and fobs
- Compact ABS body is easy to carry while retaining a read range
- Catalogue Family:
- CARDS
- Product Type:
- Card / Fob
- Technology:
- Proximity
- Frequency:
- 125 kHz excitation
- Operation:
- Passive, no battery
- Formats:
- Wiegand 26-bit and custom formats; ABA Track II magnetic stripe clock and data
- Material:
- Plastic
- Colour:
- Grey
- Slot Punch:
- Standard reinforced brass eyelet
- Read Range:
- Up to 3.5 inches / 88 mm
- Dimensions:
- 30 mm W x 38 mm H x 3.8 mm D
- Weight:
- 4.5 g
- Operating Temperature:
- -37 deg C to +50 deg C
- Humidity:
- 0-95% non-condensing
- Warranty:
- Limited lifetime warranty
