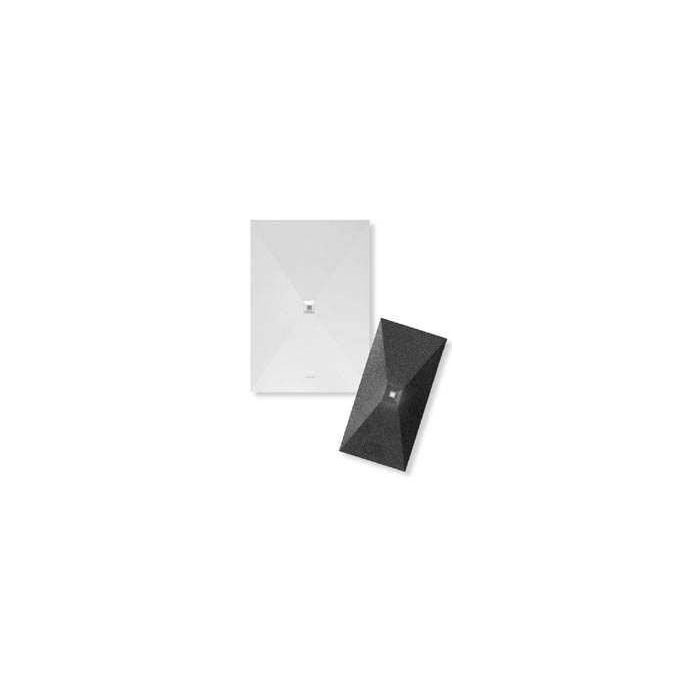

P500 Keri Pyramid Alps Proximity Reader - Wall Switch Mount
The P500 is a Keri Pyramid Series Alps proximity reader for 125 kHz access-control credentials. It is a wall-switch style reader designed for metal or plastic US single-gang wall boxes and flat surfaces, with Wiegand output and support for Pyramid Series Proximity cards and tags.
This reader suits doors, parking and turnstile applications where a larger wall-mounted reader format is preferred. It combines an IP67 rating, sealed weather- and tamper-resistant electronics, four-state LED feedback and a read range of up to 202 mm for practical indoor and outdoor access-control use.
Key Features
- Wall-switch format suits single-gang mounting points and flat reader locations.
- Supports contactless credential reads for common access-control entry workflows.
- Wiegand communication helps connect the reader into compatible security systems.
- Weather- and tamper-resistant sealed electronics support exposed reader positions.
- Visual and audible feedback helps users confirm successful credential interaction.
- Catalogue Family:
- READERS
- Model:
- P-500
- Technology:
- Proximity
- Frequency:
- 125 kHz
- Mounting:
- Metal or plastic US single-gang wall box and flat surfaces
- Dimensions:
- 76 mm W x 117 mm H x 10 mm D
- Weight:
- 113 g
- Certifications:
- FCC, ICC, CE, C-Tick and UL Standard 294
- IP Code:
- IP67
- Voltage:
- 5-16 VDC
- Current Draw:
- 35 mA typical, 75 mA peak at 12 VDC
- Read Range:
- Up to 202 mm
- Cabling:
- 24 AWG minimum multiconductor stranded cable with overall foil shield
- Interface:
- Wiegand ABA Track II
- Operating Temperature:
- -40°C to +65°C
- Colour Options:
- Black with white snap-on cover included standard
- LED:
- Four-state red, green, amber and off
- Technologies Supported:
- Pyramid Series Proximity cards and tags
- Product Type:
- Readers
