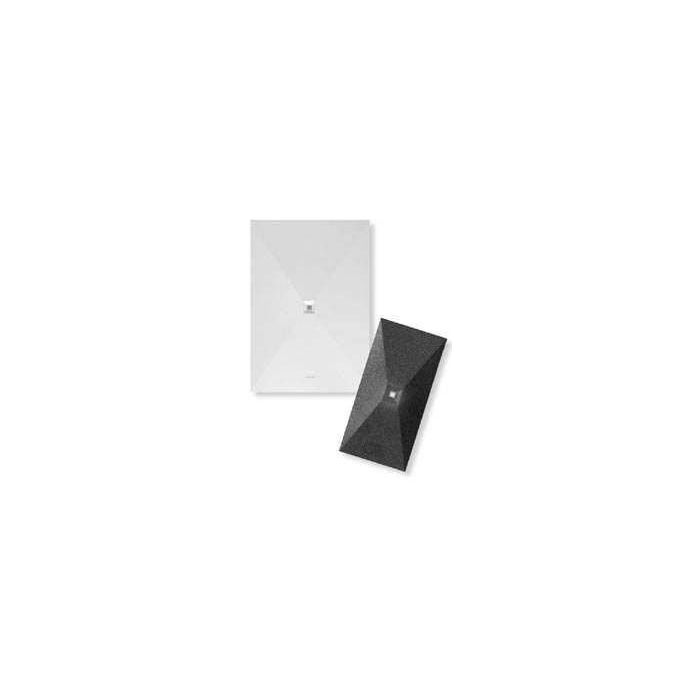

P300 Keri Pyramid Cascade Proximity Reader - Narrow Mullion
The P300 is a Keri Pyramid Series Cascade proximity reader for 125 kHz access-control credentials. It is designed for mullion mounting on metal door frames, window frames and flat surfaces, with Wiegand ABA Track II output and support for Pyramid Series Proximity cards and tags.
This narrow-style reader suits doors, parking and turnstile applications where a compact contactless reader is needed. Its sealed weather- and tamper-resistant epoxy construction, IP67 rating and four-state LED make it practical for both indoor and outdoor access-control installations.
Key Features
- Supports access-control entry points where contactless credential presentation is preferred.
- Wiegand interface support helps it integrate with a wide range of compatible access systems.
- Sealed electronics support dependable use across indoor and outdoor reader locations.
- Four-state LED and beeper feedback help users understand credential-read status at the door.
- Compact reader format helps maintain a clean installation on common access-control surfaces.
- Catalogue Family:
- READERS
- Model:
- P-300
- Technology:
- Proximity
- Frequency:
- 125 kHz
- Mounting:
- Mullions including metal door and window frames, plus flat surfaces
- Dimensions:
- 43 mm W x 81 mm H x 18 mm D
- Weight:
- 85 g
- Certifications:
- FCC, ICC, CE, C-Tick and UL Standard 294
- IP Code:
- IP67
- Voltage:
- 5-16 VDC
- Current Draw:
- 30 mA typical, 75 mA peak at 12 VDC
- Read Range:
- Up to 126 mm
- Cabling:
- 24 AWG minimum multiconductor stranded cable with overall foil shield
- Interface:
- Wiegand ABA Track II
- Operating Temperature:
- -40°C to +65°C
- Colour Options:
- Black with white snap-on cover included standard
- LED:
- Four-state red, green, amber and off
- Technologies Supported:
- Pyramid Series Proximity cards and tags
- Product Type:
- Readers
