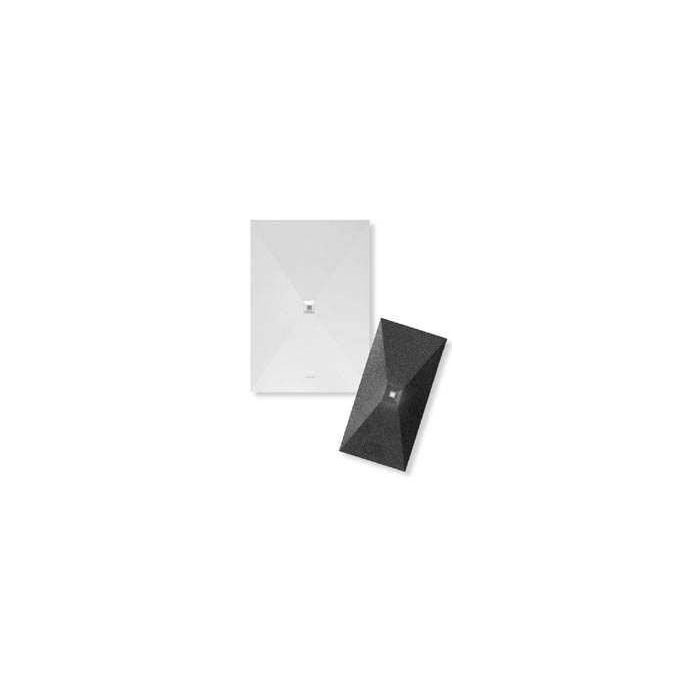

P300H Keri Pyramid Cascade Proximity Reader - HID Compatible
The P300H is a HID-compatible Keri Pyramid Series Cascade proximity reader using 125 kHz proximity technology in a narrow mullion format. It supports Pyramid Series credentials and selected HID 125 kHz proximity protocols.
Designed for access-control doors, parking entrances and turnstile applications, the reader features a Wiegand ABA Track II interface for system integration. Its sealed epoxy construction, IP67 rating, LED status indication and integrated beeper make it suitable for indoor and outdoor installations where a slim-profile reader is required.
Key Features
- Supports Pyramid Series credentials and selected HID 125 kHz proximity protocols.
- Slim mullion design suits narrow door frames, window frames and flat-surface mounting.
- Wiegand ABA Track II interface enables integration with compatible access-control systems.
- Sealed epoxy construction with IP67 protection supports indoor and outdoor installations.
- Four-state LED and integrated beeper provide visual and audible credential-read feedback.
- Catalogue Family:
- READERS
- Model:
- P-300-H
- Technology:
- PROXIMITY
- Frequency:
- 125 KHZ
- Mounting:
- MULLIONS INCLUDING METAL DOOR AND WINDOW FRAMES, PLUS FLAT SURFACES
- Dimensions:
- 43 mm W x 81 mm H x 18 mm D
- Weight:
- 85 g
- Certifications:
- FCC, ICC, CE, C-Tick and UL Standard 294
- IP Code:
- IP67
- Voltage:
- 5-16 VDC
- Current Draw:
- 30 MA TYPICAL, 75 MA PEAK AT 12 VDC
- Read Range:
- UP TO 126 MM
- Interface:
- Wiegand ABA Track II
- Operating Temperature:
- -40 DEG C TO +65& DEG C
- Colour Options:
- Black with white snap-on cover included standard
- LED:
- Four-state red, green, amber and off
- Technologies Supported:
- Pyramid Series Proximity cards and tags plus certain HID 125 kHz proximity protocols
- Product Type:
- READERS
