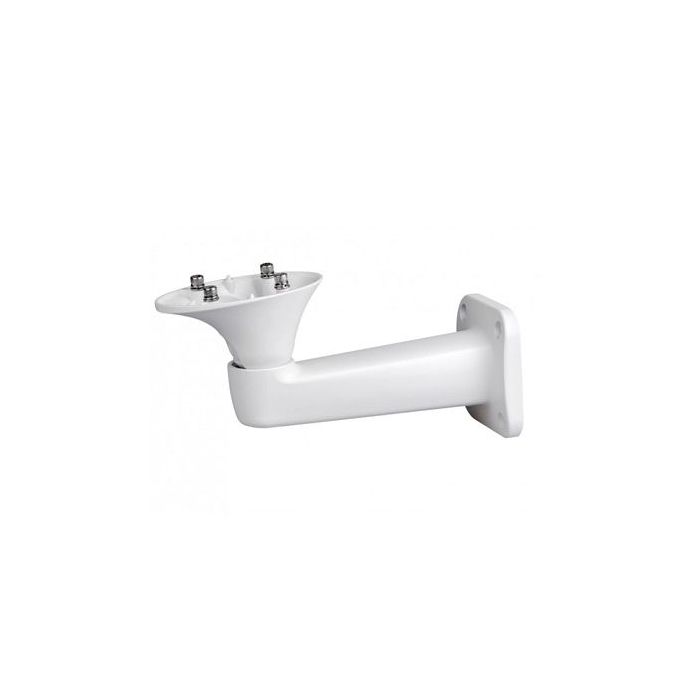

PFB604W Dahua 14 inch Housing Wall Mount Bracket
The PFB604W is a Dahua 14 inch housing wall mount bracket for CCTV camera installations. It features aluminium construction, dimensions of 264.0 mm x 100.0 mm x 146.0 mm, and a maximum load capacity of 4.0 kg.
The bracket operates in temperatures from -40°C to +60°C and humidity levels from 0% to 90% RH. It includes an M20 (G1/2 inch) thread and is compatible with Dahua camera models listed in the Camera Accessories Selection guide.
Key Features
- Wall mount format supports a neat camera mounting outcome
- Aluminium construction gives the bracket a clearly specified build
- 264.0 mm x 100.0 mm x 146.0 mm size helps installers plan fit and clearance before mounting
- 4.0 kg load rating provides a defined mounting limit for compatible camera setups
- Hidden line design helps support a cleaner housing installation
- Catalogue Family:
- CAMERA BRACKET
- Model:
- PFB604W
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 264.0 mm x 100.0 mm x 146.0 mm
- Colour:
- White
- Load Bearing:
- 4.0 kg
- Weight:
- 0.56 kg
- Installation:
- Wall mount
- Thread:
- M20 (G1/2 inch)
- Operating Temperature:
- -40 °C to +60 °C
- Humidity:
- 0-90% RH
- Applicable Model:
- Accessory Selection
