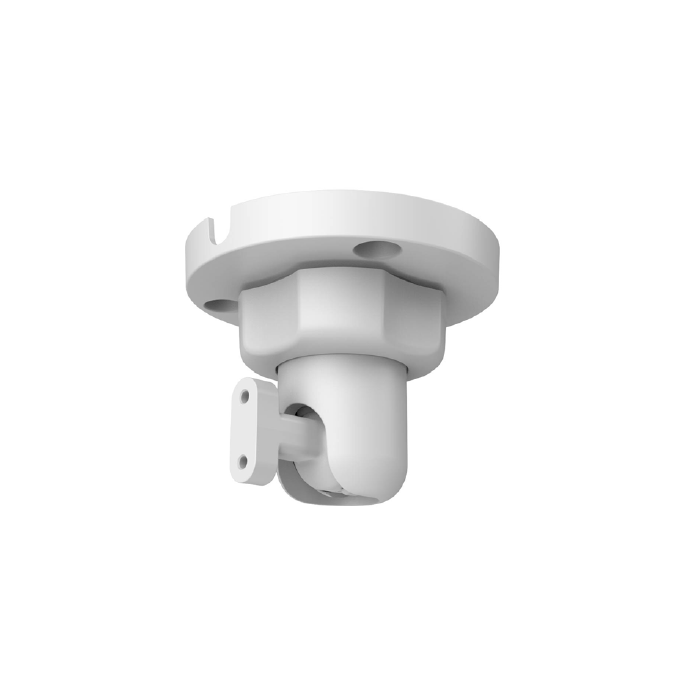

ARA34A Detector Bracket
The ARA34A is a Dahua DHI-ARA34A detector bracket for ARD1731 series devices. It supports wall and ceiling mounting, adjustable horizontal and vertical angles, PC and aluminium alloy construction, and measures 70.0 mm in diameter by 55.1 mm.
It is useful where detector placement needs more controlled aiming than a fixed mount can provide. It supports wall or ceiling installation and provides different adjustment ranges for each mounting orientation.
Key Features
- Wall or ceiling mounting supports flexible detector placement.
- Adjustable angles support precise coverage alignment.
- Compact design provides a discreet mounting solution.
- Compatible with the ARD1731 series detectors.
- Lightweight construction supports straightforward installation.
- Catalogue Family:
- SCREAMERS & STROBES
- Model:
- DHI-ARA34A
- Material:
- Aluminium
- Dimensions:
- 70.0 x 55.1 mm
- Installation:
- Wall mount; ceiling mount
- Rotation Angle:
- Wall: horizontal +/-90 degrees, vertical +/-50 degrees; ceiling: horizontal +/-180 degrees, vertical +/-90 degrees
- Applicable Model:
- ARD1731 series
- Weight:
- 45 g
- Operating Temperature:
- -10 deg C to +55 deg C
- Operating Humidity:
- 10-90% RH
- Product Type:
- Screamers & Strobes
