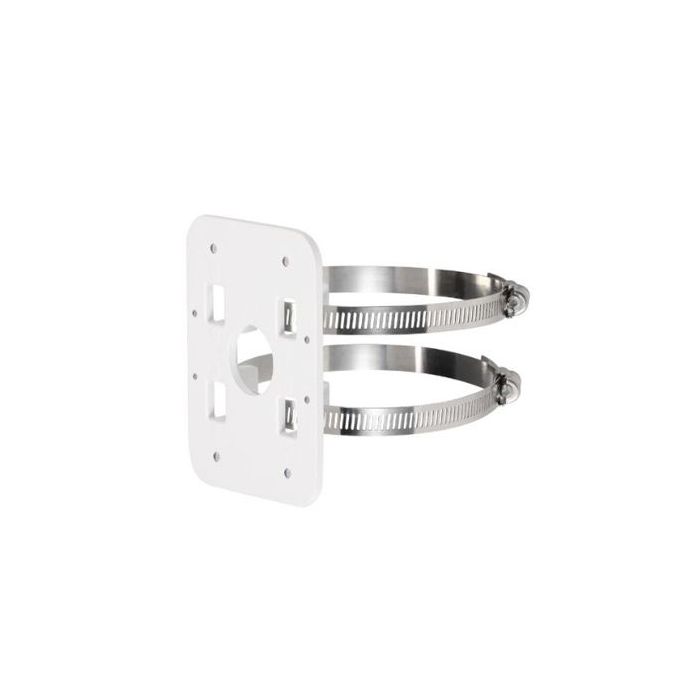

PFA152-E-VER3 Dahua DH-PFA152-E Pole Mount Bracket - 80 mm To 150 mm Mast
The PFA152-E-VER3 is a Dahua pole mount bracket for CCTV camera mounting applications. Aluminium and SUS304 construction with a white finish and 3.0 kg load bearing capacity.
It suits security installations where a dedicated Dahua camera accessory helps create a neater and more controlled mounting arrangement. It suits pole-mounted camera accessory installations where the mast diameter is between 80 mm and 150 mm.
Key Features
- Pole mount bracket format supports a cleaner mounting point for PFA152-E-VER3 camera accessory installs.
- Confirmed aluminium and sus304 construction keeps PFA152-E-VER3 material selection clear for installers.
- 125.6 mm x 114 mm x 20 mm dimensions help match PFA152-E-VER3 to available mounting space.
- 3.0 kg load bearing capacity helps assess PFA152-E-VER3 against the camera assembly.
- 80 mm to 150 mm pole or mast range gives PFA152-E-VER3 a clear sizing window for site planning.
- Catalogue Family:
- CAMERA BRACKET
- Model:
- DH-PFA152-E
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 125.6 mm x 114 mm x 20 mm
- Mast Diameter:
- 80 mm to 150 mm
- Pipe Thread:
- N/A
- Load Bearing:
- 3.0 kg
- Weight:
- 0.27 kg
- Colour:
- White
- Operating Temperature:
- -40 deg C to +60 deg C
- Humidity:
- <90% RH
