PFB303W Wall Mount Bracket

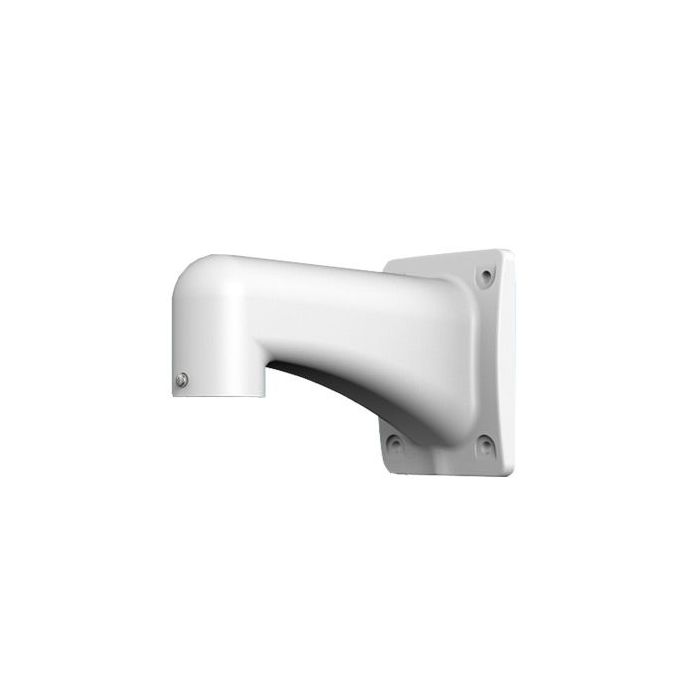

The PFB303W is a Dahua wall mount bracket for CCTV camera installations. It features aluminium construction, dimensions of 115 mm x 160 mm x 255 mm, and a maximum load capacity of 7 kg.
The bracket operates in temperatures from -40°C to +60°C and humidity levels below 90% RH. It is compatible with Dahua camera models listed in the Camera Accessories Selection guide.
Key Features
- Wall mount format supports a neat camera mounting outcome
- Aluminium construction gives the bracket a clearly specified build
- 115 mm x 160 mm x 255 mm size helps installers plan fit and clearance before mounting
- 7 kg load rating provides a defined mounting limit for compatible camera setups
- -40 °C to +60 °C operating range supports use across demanding site temperatures
- Catalogue Family:
- CAMERA BRACKET
- Model:
- PFB303W
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 115 mm x 160 mm x 255 mm
- Colour:
- White
- Load Bearing:
- 7 kg
- Weight:
- 0.66 kg
- Installation:
- Wall mount
- Operating Temperature:
- -40 °C to +60 °C
- Humidity:
- 0-90% RH
- Applicable Model:
- Accessory Selection
