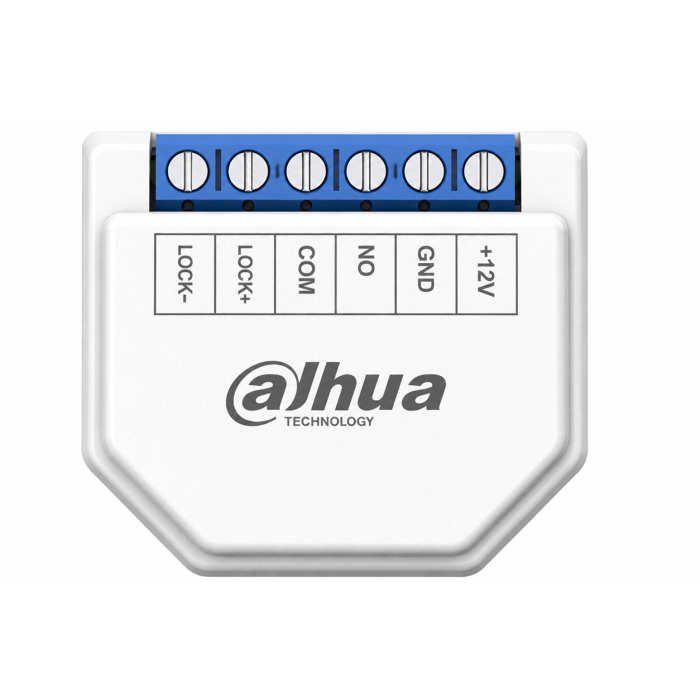

DEE201R Access Control Extension Module
The DEE201R is an access control extension module for lock-switch control. It uses PC + ABS casing, white appearance, 12 VDC 300 mA power supply and a maximum instantaneous 20 VDC/4 A power output.
Its compact 42 mm x 37 mm x 21.5 mm body and flush-mount installation make it suitable for installations where a small extension module is needed in the access control path. CE certification, operating temperature and humidity ranges support straightforward specification.
Key Features
- Provides a compact extension module for lock-switch control.
- Fits tight installation spaces with a small flush-mount body.
- Uses PC + ABS casing with a white appearance.
- Supports access-control power planning with clear input and output values.
- Keeps specification clear with CE certification and environmental ranges stated.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Function:
- Controls the lock switch
- Power Output:
- 20 VDC/4 A maximum instantaneous current
- Casing Material:
- PC + ABS
- Appearance Colour:
- White
- Power Supply:
- 12 VDC/300 mA
- Installation:
- Flush mount
- Certifications:
- CE
- Dimensions:
- 42 mm x 37 mm x 21.5 mm
- Operating Temperature:
- -10 °C to +55 °C
