PCR43305RE 5 Channel 433 MHz Penta Receiver - IP66 Case

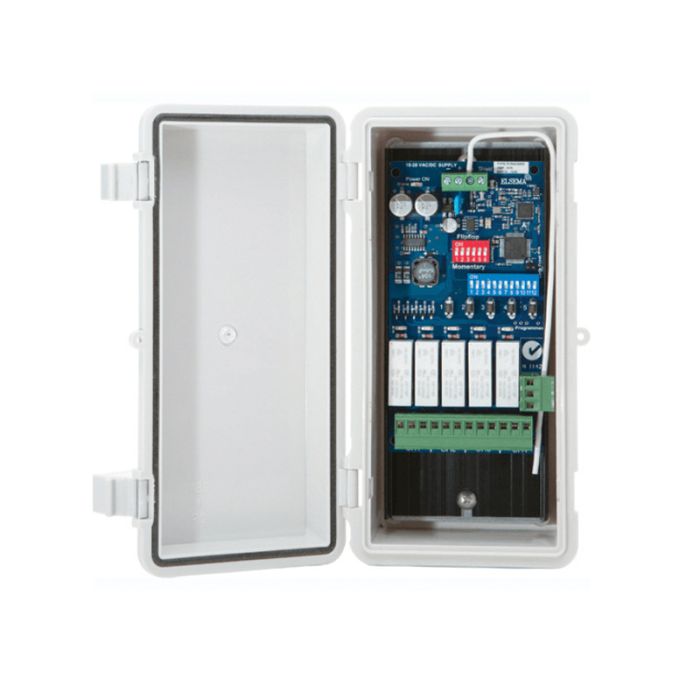

The PCR43305RE is the enclosed IP66-case version of Elsema's 5-channel 433 MHz Penta receiver with frequency hopping. It supports 12 to 24 V AC or DC supply and provides five changeover relay outputs, each rated at 10 A at 240 V AC.
For access, lighting, security and automation installations requiring several wireless switching outputs, this receiver combines multi-channel control with an outdoor-rated case option. PentaFOB and PentaCODE support, selectable modes and diagnostic LEDs help make commissioning and future servicing more manageable.
Key Features
- Five relay channels suit installations that need multiple independent wireless control outputs.
- IP66 enclosure option supports use where a protected receiver housing is required.
- Selectable relay behaviour allows the same receiver to suit momentary, latching or security-style tasks.
- Antenna diversity and frequency hopping support robust 433 MHz remote-control performance.
- Penta remote compatibility keeps the receiver aligned with Elsema Penta access-control systems.
- Catalogue Family:
- POWER SUPPLY
- Supply Voltage:
- 12 to 24 V AC or DC
- Standby Current:
- 15 mA at 24 V DC
- Current Consumption:
- 91 mA with all relays on
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- 5 changeover relay outputs rated at 10 A at 240 V AC each
- Dimensions:
- 200 x 100 x 75 mm
- Usable Transmitters:
- FOB433 series and PCK series
- Enclosure:
- IP66 rated case
- Product Type:
- Power Supply
