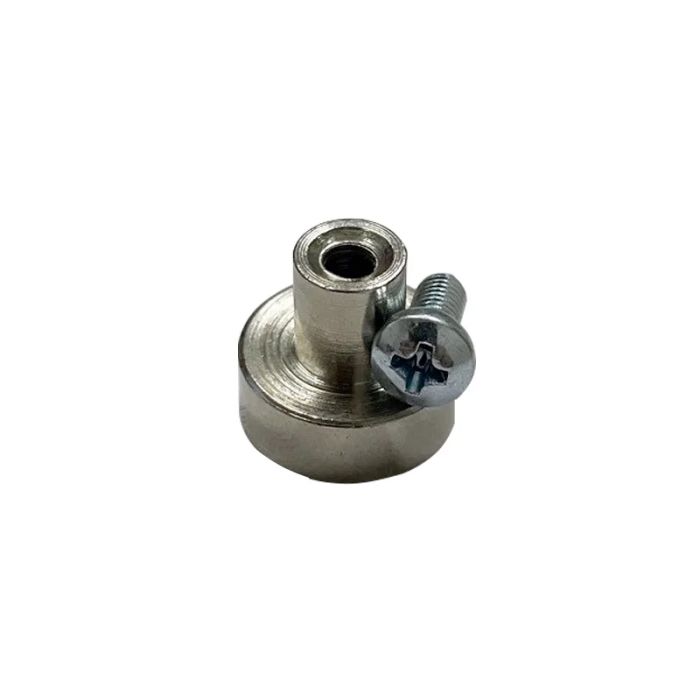

MW892 12 mm Magnetic PCB Stand-Offs - Pack of 20
The MW892 is a pack of 12 mm magnetic stand-offs for mounting expansion modules and other electronics inside a metal cabinet. The nickel plated stand-offs are supplied with M3 x 10 mm Phillips head screws and use a 3.5 kg pull force magnet.
These stand-offs are useful when upgrading older systems because compatible electronics may be positioned in an existing cabinet without replacing the cabinet. The magnetic mounting style supports flexible module placement where orientation and cabinet layout need to be managed on site.
Key Features
- Magnetic mounting helps position modules without permanent cabinet modification.
- 12 mm height provides spacing for electronics inside metal enclosures.
- Supplied screws support a tidy mechanical fit for PCB hardware.
- Nickel plated finish gives the stand-offs a clean, hardware-ready surface.
- Pack format supports multi-module or service-stock installation needs.
- Catalogue Family:
- TOOLS & INSTALLATION ACCESSORIES
- Stand-Off Height:
- 12 mm
- D1:
- 6 mm
- Thread:
- M3
- H:
- 12.2 mm | 5 mm
- Screws:
- M3 x 10 mm Phillips head screws
- Pull Force:
- 3.5 kg
- Finish:
- Nickel plated
- Pack Quantity:
- 20 pcs
- Product Type:
- Tools & Installation Accessories
