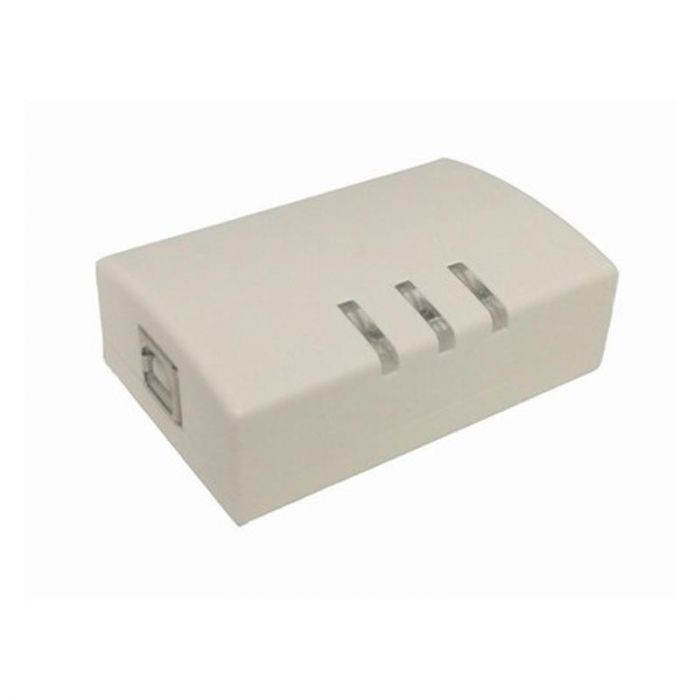

IUI-SOL-ADAPTER Direct Link Adapter
The IUI-SOL-ADAPTER is a Bosch Direct Link Adapter for SDI2 bus control panels. It supports file configuration, firmware upgrade and control panel remote control through DLA connection to the panel and A-Link Plus connection to a PC by USB cable.
It is suited to installers working with Solution Series panels who need a portable tool for upload/download configuration files or firmware updates. The adapter stores up to three panel configuration files and includes the USB cable, SDI2 interconnect wiring connector and jumpers.
Key Features
- Supports configuration file upload and download for compatible panels
- Enables firmware upgrade workflows through the direct link adapter
- A-Link Plus remote control context supports installer service work
- Stores up to three panel configuration files for practical field use
- Included connection hardware helps streamline setup with SDI2 panels
- Catalogue Family:
- BOSCH 3000
- Product Type:
- Bosch 3000
- Dimensions:
- 86 mm x 45 mm x 22 mm
- Current:
- 35 mA maximum
- Voltage:
- 12 V DC nominal
- Operating Range:
- 0 deg C to 50 deg C
- Relative Humidity:
- 5% to 93%
- Compatible Panels:
- ICP-SOL2-P, ICP-SOL3-P, ICP-SOL2-APR, ICP-SOL3-APR and SDI2 control panels
