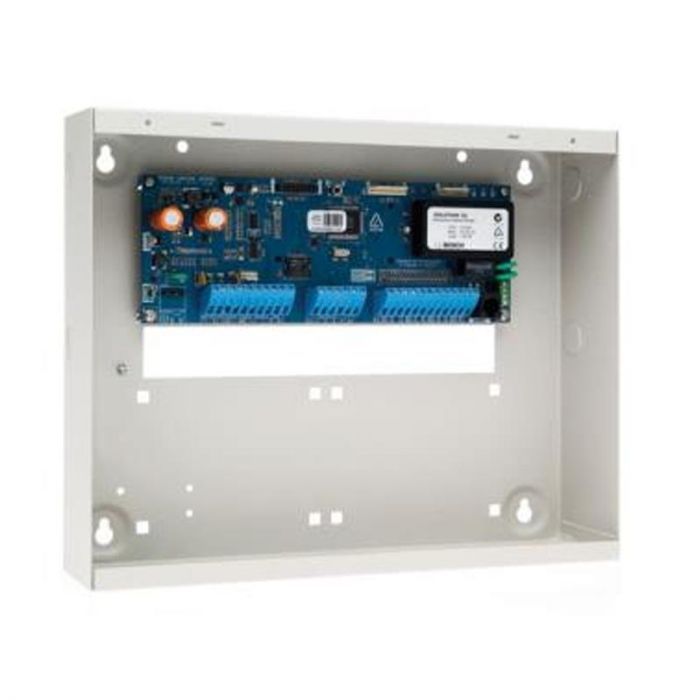

CC500P Solution 16i Control Panel PCB
The CC500P is the PCB-only version of the Bosch Solution 16i Control Panel. The Solution 16i platform provides 16 on-board zones, 32 users, partitioning to four areas, proximity code pad support and flexible reporting options.
It suits intrusion-control installations that need a configurable Bosch panel board for use with an existing or separately specified enclosure. The platform supports wired zones, wireless zones with a serial radio receiver, user credentials and scheduled functions for residential and light commercial security applications.
Key Features
- PCB-only supply supports panel replacement or enclosure-specific installations
- Sixteen on-board zones provide a practical base for intrusion detection
- User credential support helps manage PINs, RF keyfobs and proximity tokens
- Flexible reporting options support monitored security deployments
- Schedule support can automate arming, disarming or output control
- Catalogue Family:
- BATTERY
- Product Type:
- Battery
- Zones:
- 16 on-board zones
- Users:
- 32
- Areas:
- Partitionable to 4 areas
- Primary Power:
- 240 V AC / 18 V AC at 1.3 A via TF008-A plug pack
- Backup Battery:
- 12 V DC / 6 Ah sealed lead-acid battery
- Operating Temperature:
- 0 deg C to 55 deg C
- Relative Humidity:
- 5% to 85% at 30 deg C non-condensing
