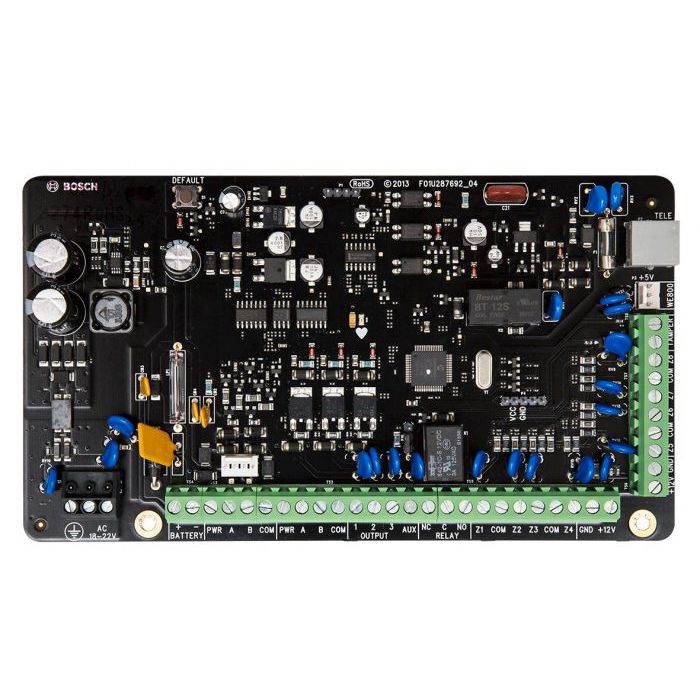

ICP-SOL2-P Solution 2000 Control Panel PCB
The ICP-SOL2-P is the Bosch Solution 2000 control panel PCB for the Solution 2000/3000 panel range. Supports 8/16 fully programmable zones, one installer code, 32 users with RF keyfobs, up to four codepads and communication module options.
For the Solution 2000 variant, it provides a compact panel platform for Bosch residential and small commercial intrusion systems. It is suited to residential and small commercial intrusion systems requiring a flexible Bosch panel platform with codepad and communications expansion options.
Key Features
- Solution 2000 panel identity supports Bosch residential intrusion installations
- Programmable-zone architecture helps tailor the panel to site requirements
- Codepad support offers flexible local user control options
- Communication accessory support allows broader reporting and service workflows
- Shared user-guide specifications provide a bounded basis for panel operating conditions
- Catalogue Family:
- ALARM PANEL
- Product Type:
- Alarm Panel
- Panel Range:
- Solution 2000/3000
- Programmable Zones:
- 8-zone Solution 2000 model within the 8/16-zone range
- Users:
- 32 users with RF keyfobs across the range
- Codepads:
- Up to 4 codepads
- Power Source:
- TF008 plug pack - 240 V / 18 V AC at 1.3 A
- Backup Battery:
- 7 Ah / 12 V DC sealed lead-acid battery
- Temperature Range:
- 0 deg C to +50 deg C
