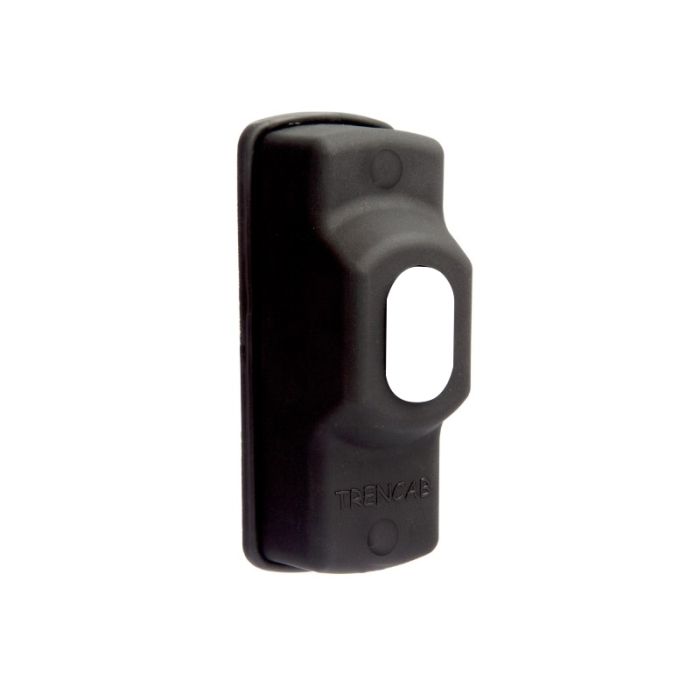

MSS1NOCYL Trencab Surface Mount Keyswitch Casing and Microswitch - No Cylinder
The MSS1NOCYL is a Trencab surface-mount keyswitch casing supplied with an SPDT microswitch and without a cylinder. It measures 47 x 117 x 42.5 mm and supports a maximum load of 1 A at 24 VAC or 48 VDC.
Designed for access-control override applications, the unit provides the casing and switching hardware for installations where the cylinder is supplied or keyed separately.
Key Features
- Surface-mount keyswitch casing supplied without a cylinder.
- SPDT microswitch supports access-control switching applications.
- 47 x 117 x 42.5 mm housing suits compatible surface-mount installations.
- Supports a maximum load of 1 A at 24 VAC or 48 VDC.
- Suitable for installations requiring a separately supplied or keyed cylinder.
- Catalogue Family:
- ALARM SWITCH
- Product Type:
- Alarm Switch
- Cylinder:
- No cylinder
- Contact:
- Microswitch SPDT
- Dimensions:
- 47 mm (W) x 117 mm (H) x 42.5 mm (D)
- Maximum Load:
- 24 V AC or 48 V DC at 1 A
- Body Material:
- ABS black with glass-filled nylon cams
