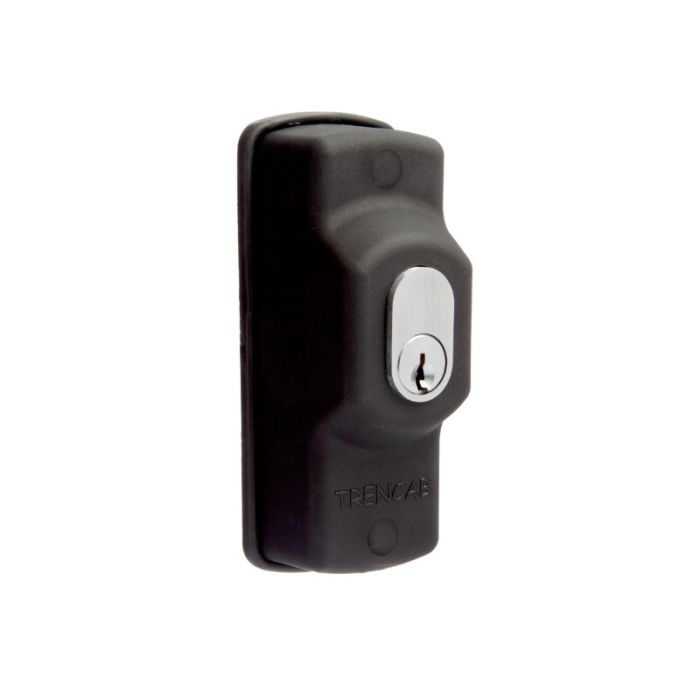

MSS1KA Trencab Surface Mount Keyswitch with C4 Cylinder - Keyed Alike
MSS1KA is a Trencab surface mount keyswitch with a C4 oval cylinder in keyed-alike configuration. It features momentary or On/Off action, SPDT microswitch contact, 12 VDC 450 mA power supply reference and 47 mm x 117 mm x 42.5 mm dimensions.
It is intended for override control on doors, gates and boom gates where multiple keyswitches may need matching keying. The surface-mount ABS body, rubber gasket and IP67 rated microswitch support practical access-control installations in indoor or outdoor locations.
Key Features
- Supports keyed-alike projects where several access points share key operation.
- Provides override control for doors, gates and boom-gate applications.
- Allows momentary or On/Off function selection to match site requirements.
- Keeps the installation compact with a surface-mounted Trencab body.
- Supports reliable switching through an SPDT microswitch arrangement.
- Catalogue Family:
- ALARM SWITCH
- Key Type:
- Keyed alike
- Cylinder Type:
- Oval C4 cylinder
- Contact:
- Microswitch SPDT
- Power Supply:
- 12 VDC 450 mA
- Dimensions:
- 47 mm (W) x 117 mm (H) x 42.5 mm (D)
- Maximum Load:
- 24 V AC or 48 V DC at 1 A
- Action:
- Momentary or On/Off
- Product Type:
- Alarm Switch
