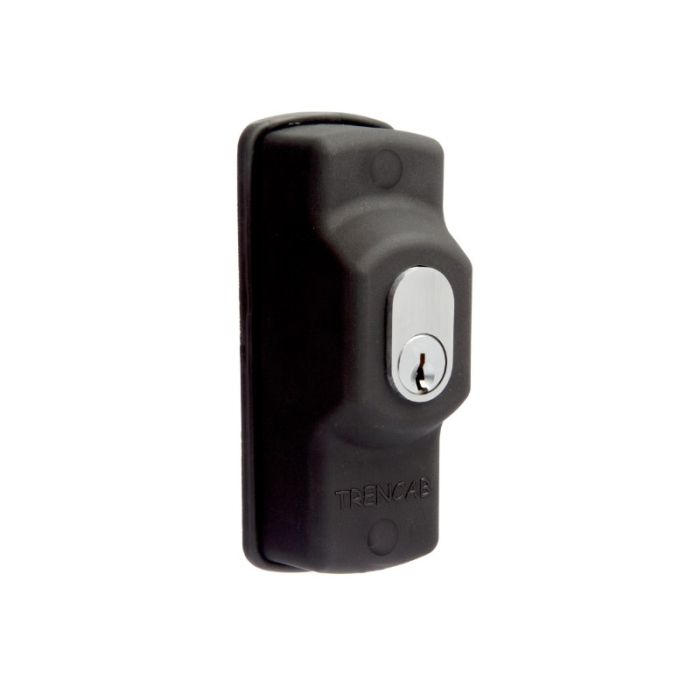

MSS1NMB Trencab Surface Mount Keyswitch with C4 Cylinder - Keyed to NMB
MSS1NMB is a Trencab surface mount keyswitch with an oval C4 cylinder keyed to NMB. It features momentary or On/Off action, SPDT microswitch contact, 12 VDC 450 mA power supply reference and 47 mm x 117 mm x 42.5 mm dimensions.
It suits access-control override applications for doors, gates and boom gates where NMB keying is required. The family construction includes an ABS black body, tough glass-filled nylon cams and an IP67 rated microswitch with wiring leads.
Key Features
- Supports NMB keyed access requirements for controlled override points.
- Provides a practical surface-mount option for gates, doors and boom gates.
- Allows momentary or On/Off operation depending on site function needs.
- Uses a compact Trencab body suitable for access-control field installations.
- Supports standard egress or override wiring through SPDT microswitch contact.
- Catalogue Family:
- ALARM SWITCH
- Key Type:
- Keyed to NMB
- Cylinder Type:
- Oval C4 cylinder
- Contact:
- Microswitch SPDT
- Power Supply:
- 12 VDC 450 mA
- Dimensions:
- 47 mm (W) x 117 mm (H) x 42.5 mm (D)
- Maximum Load:
- 24 V AC or 48 V DC at 1 A
- Action:
- Momentary or On/Off
- Product Type:
- Alarm Switch
