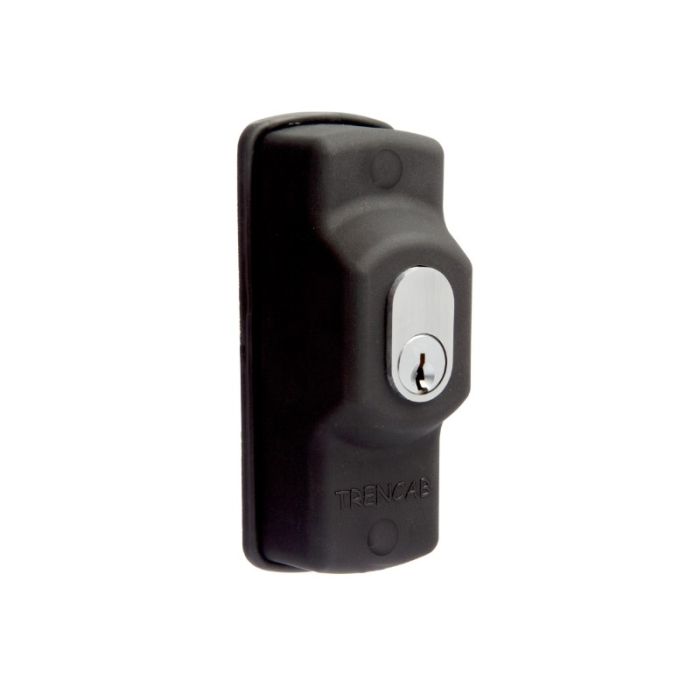

MSS1 Trencab Surface Mount Keyswitch with C4 Cylinder - Keyed Different
MSS1 is a Trencab surface mount keyswitch with a C4 oval cylinder in keyed-different configuration. It features momentary or On/Off action, SPDT microswitch contact, 47 mm x 117 mm x 42.5 mm dimensions and maximum load of 24 V AC or 48 V DC at 1 A.
It suits indoor or outdoor override switching for doors, gates and boom gates where controlled access may be needed for clients, emergency services or utilities. The body is ABS black with tough glass-filled nylon cams, and the IP67 microswitch with wiring leads supports practical external access-control use.
Key Features
- Provides controlled override switching for gates, doors and boom-gate applications.
- Supports keyed-different access where individual key control is required.
- Allows momentary or On/Off operation using the cam arrangement.
- Uses a compact surface-mount body suitable for practical external installations.
- Supports common access-control wiring through an SPDT microswitch layout.
- Catalogue Family:
- ALARM SWITCH
- Key Type:
- Keyed to differ
- Cylinder Type:
- Oval C4 cylinder
- Contact:
- Microswitch SPDT
- Power Supply:
- 12 VDC 450 mA
- Dimensions:
- 47 mm (W) x 117 mm (H) x 42.5 mm (D)
- Maximum Load:
- 24 V AC or 48 V DC at 1 A
- Action:
- Momentary or On/Off
- Product Type:
- Alarm Switch
