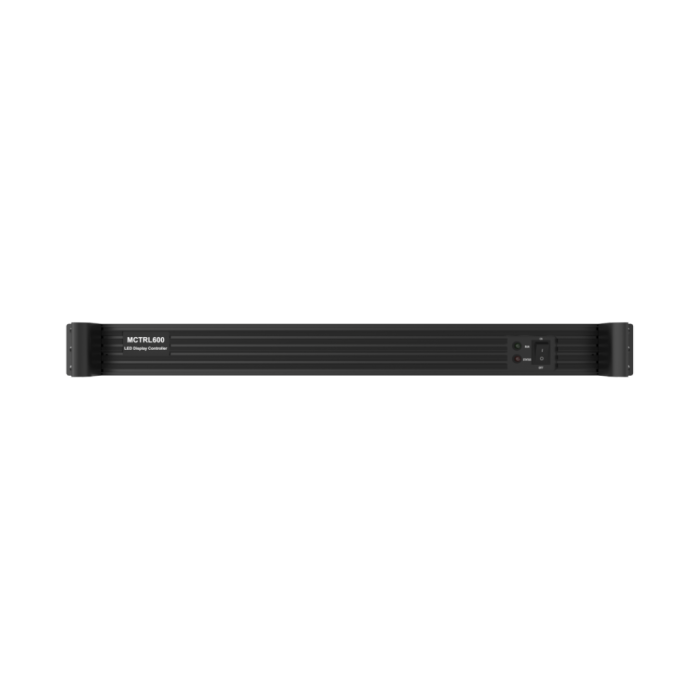

MCTRL600 NovaStar LED Display Controller - DVI HDMI Audio And 4 Ethernet Outputs
The MCTRL600 is a NovaStar LED display controller supporting one DVI input one HDMI 1.3 input one audio input and four Gigabit Ethernet outputs. A single controller supports input resolutions up to 1920 x 1200 at 60 Hz.
It is intended for rental and fixed LED display installations including live events sports venues and security monitoring centres. USB PC control UART cascading and pixel-level brightness and chroma calibration support practical commissioning and display management.
Key Features
- Multiple input types support common LED display source workflows.
- Four Gigabit Ethernet outputs provide controller-to-display connectivity.
- USB control and UART cascading support multi-controller setups.
- Brightness and chroma calibration capability helps improve display consistency.
- Broad AC input range suits professional installation environments.
- Catalogue Family:
- NETWORKING
- Model:
- MCTRL600
- Product Type:
- LED Display Controller
- Inputs:
- 1 x SL-DVI; 1 x HDMI 1.3; 1 x audio
- Outputs:
- 4 x RJ45 Gigabit Ethernet
- Maximum Input Resolution:
- 1920 x 1200 at 60 Hz
- Control:
- Type-B USB 2.0; UART IN/OUT
- Power:
- AC 100-240 V 50/60 Hz
- Rated Power Consumption:
- 6.6 W
- Operating Temperature:
- -20 deg C to +60 deg C
- Dimensions:
- 482.0 mm x 268.5 mm x 44.4 mm
- Weight:
- 2.5 kg
- Certifications:
- CE; FCC; IC; CB; PSE
