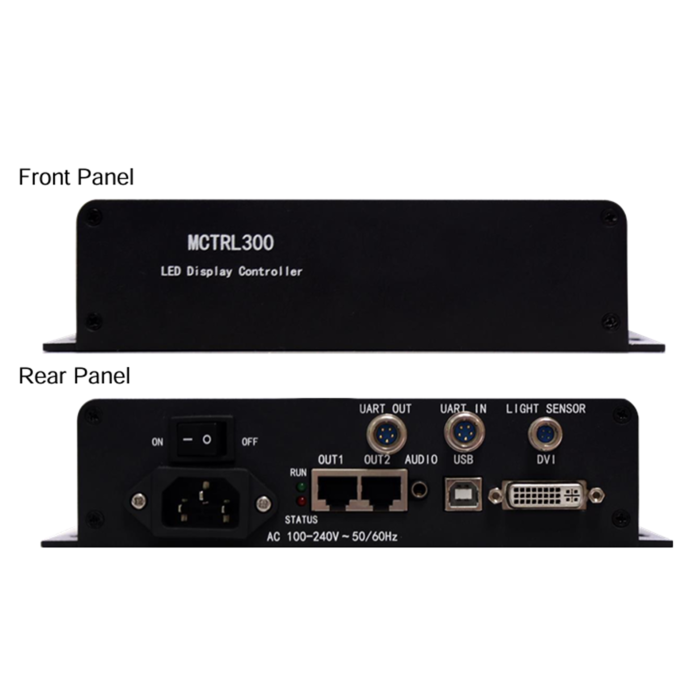

MCTRL300 NovaStar LED Display Controller
MCTRL300 is a NovaStar LED display controller for rental and fixed LED screen installations. The supplied specifications confirm one SL-DVI input, one audio input, two Gigabit Ethernet outputs, USB control and UART cascading, with a single controller supporting input resolutions up to 1920 x 1200 @ 60 Hz.
It is suited to live events, security monitoring centres, sports venues and other LED display applications where a compact controller needs to send video data over Ethernet outputs. Pixel-level brightness and chroma calibration support improved display consistency when used with NovaStar software.
Key Features
- Gives installers a compact control point for fixed or rental LED display systems.
- Dual Gigabit Ethernet outputs support practical screen data distribution from one unit.
- USB and UART control options make configuration and multi-controller cascading more flexible.
- Calibration support helps improve visual consistency across the connected LED display.
- Wide AC input range supports straightforward deployment across varied site power conditions.
- Catalogue Family:
- CAMERA
- Product Type:
- Camera
- Video Input:
- 1 x SL-DVI
- Audio Input:
- 1 x audio
- Ethernet Outputs:
- 2 x Gigabit Ethernet
- Maximum Input Resolution:
- 1920 x 1200 @ 60 Hz
- Control Ports:
- Type-B USB 2.0 and UART IN/OUT
- Input Voltage:
- AC 100-240 V, 50/60 Hz
- Rated Power Consumption:
- 3.0 W
- Operating Temperature:
- -20°C to +60°C
- Dimensions:
- 204.0 mm x 160.0 mm x 48.0 mm
- Weight:
- 1.04 kg
- Certifications Listed:
- CE, RoHS, FCC, IC, CB, NTRA
