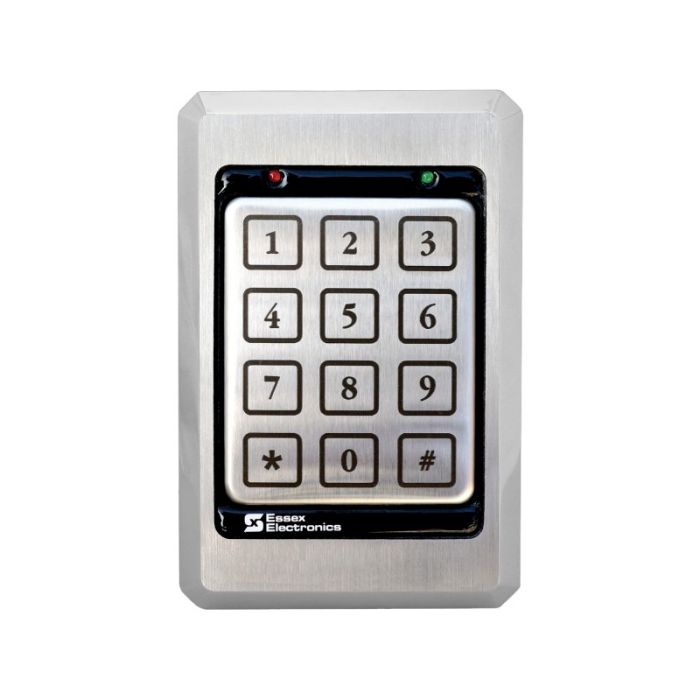

KTP-103 Essex 3 x 4 Stainless Steel Wiegand Keypad Reader
The KTP-103 is an Essex KTP Series 12-pad 3 x 4 keypad reader with 26-bit Wiegand output, a stainless steel bezel, surface-mount design, and field-selectable 5 V or 12 V operation.
Suitable for indoor, outdoor, harsh, and high-use access control applications. Features Essex Billion Cycle Switch Technology, field-programmable site code operation, and installation on a single-gang switch box or surface mount.
Key Features
- Supports Wiegand access control panels with open-format output.
- Field-selectable voltage helps suit different controller setups.
- Piezo-style keypad technology supports high-use entry points.
- Surface-mount capability gives installers flexibility on site.
- Wide operating temperature range supports demanding environments.
- Catalogue Family:
- READERS
- Model:
- KTP-103
- Output:
- 26 Bit Wiegand open format
- Input Voltage:
- 5V or 12V field selectable
- Current Draw:
- Less than 20 mA standby
- Operating Temperature:
- -40 deg C to +70 deg C
- Dimensions:
- 5 1/8 in H x 3 3/8 in W x 7/16 in D (13 x 8.6 x 1.1 cm)
- Mounting:
- Single gang switchbox or surface mount
- Certifications Listed:
- UL Listed Access Control Unit Accessory 43J0 CE compliance and FCC Part 15
- Product Type:
- Readers
