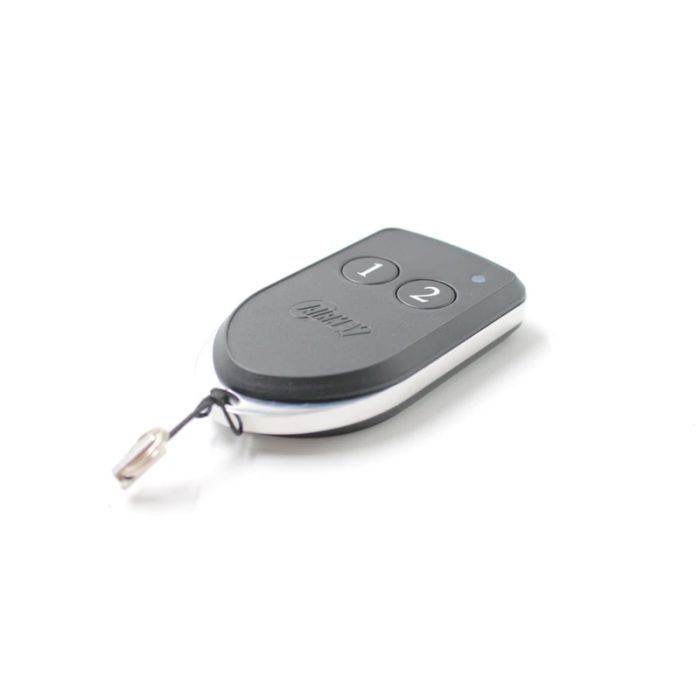

AK2-W27 Airkey Series 4 2 Button 27-bit Wiegand Remote Transmitter
The AK2-W27 is an Airkey Series 4 2-button remote control transmitter configured for 27-bit Wiegand access-control applications. It forms part of the Series 4 Airkey range, which features a redesigned case with improved sealing, a screw for easier opening and a die-cast surround while maintaining compatibility with previous Airkey generations.
The transmitter uses a custom programmed RF transmitter and microcontroller with high-security rolling code encryption to help prevent recorded codes from being duplicated. Operating on 433.92 MHz using ASK (OOK) transmission, it is housed in an IP65-rated enclosure and powered by a long-life CR2032 lithium/manganese button cell for reliable everyday operation.
Key Features
- 2-button remote transmitter configured for 27-bit Wiegand access-control systems.
- High-security rolling code encryption helps prevent recorded codes from being duplicated.
- Redesigned Series 4 housing features improved sealing, a die-cast surround and a screw-fastened case.
- IP65 environmental resistance supports reliable operation in demanding conditions.
- ASK (OOK) transmission at 433.92 MHz with CR2032 battery power for dependable wireless operation.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Model:
- AK2-W27
- Product Type:
- Transmitters & Receivers
- Wiegand Format:
- 27-bit
- Environmental Resistance:
- IP65
- Dimensions:
- 63 x 35.5 x 12 mm
- Weight:
- 26 g
- Transmission:
- ASK (OOK) at 433.92 MHz, approximately 40 µW EIRP
- Data Packet:
- 69-bit encrypted packets with 32-bit serial number
- Battery:
- CR2032 lithium/manganese button cell
