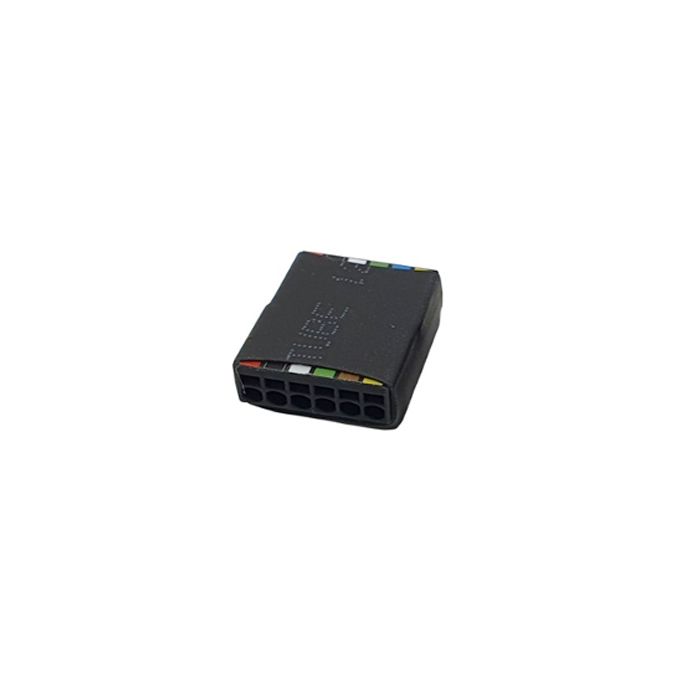

FAST-RJ6 FAST-R6J Wiegand Reader Joiner - Pack of 10
The FAST-RJ6 is a Jack Fuse FAST security connector for joining access control cabling without solder, crimps or screw terminals. 6-way quick-connect joiner for Wiegand and 6-core card reader cabling.
Suitable for connecting reader power, data, LED, and buzzer control circuits. Features a compact quick-connect design.
Key Features
- Helps installers standardise access control cable joins across repeatable work
- Spring clamp termination supports faster fit-off with fewer loose connection points
- Compact connector body suits wall cavities, ducts and door frame spaces
- Pre-termination can reduce time spent joining peripherals on site
- Reusable connection design supports efficient service replacement of equipment
- Catalogue Family:
- TOOLS & INSTALLATION ACCESSORIES
- Product Type:
- Tools & Installation Accessories
- Conductor Size:
- 0.2 - 0.5 mm2 (24 - 20AWG)
- Maximum Current:
- 2A on red and black trace only
- Suitable Conductors:
- Solid or stranded
- Dimensions:
- 20.5 L x 17 W x 8 H mm
- Compliance References:
- RoHS compliant; AUS/NZ (RMC-EMC) 61000.6.3 compliant
- Primary Materials:
- Polyamide 46, fiberglass, polyolefin
- Pack Quantity:
- 10
- Country of Origin:
- China
