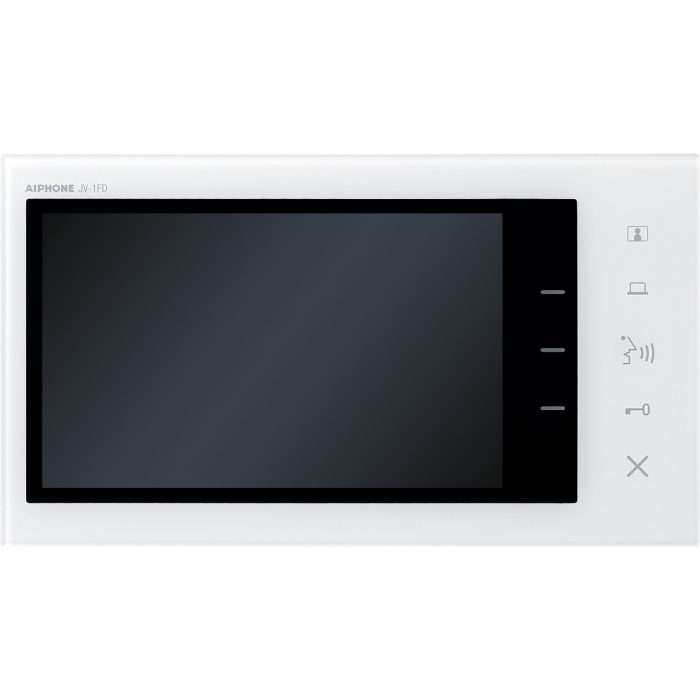

JV-1FD JV Series Video Expansion Station
The JV-1FD is an Aiphone JV Series video expansion station that adds an extra indoor monitor to a JV Series system. The one JV-1FD can be added per JV system, giving users a second 7 inch screen for viewing visitors and communicating with the door station.
Built for surface wall mounting, the station provides hands-free auto-voice actuation or push-to-talk operation, with electrostatic touch buttons for door release and exterior device activation. Its wiring uses two conductors to the door station and six conductors to the JV-1MD master station, making it a practical expansion monitor for a 1 x 2 JV Series layout.
Key Features
- Adds a second indoor viewing point to a JV Series installation without changing the core system family.
- Supports everyday visitor screening with a 7 inch display and hands-free or push-to-talk speech.
- Keeps operation simple through touch controls for door release and option output functions.
- Provides a white surface-mounted monitor format for residential or small commercial interiors.
- Catalogue Family:
- INTERCOM
- Model:
- JV-1FD
- Product Type:
- Intercom
- System Expansion:
- One can be added per JV system
- Power Source:
- 24 V DC from PS-2420UL
- Consumption:
- 100 mA standby; 780 mA maximum
- Dry Contacts:
- Door release N/O 24 V AC/DC, 1 A; option output N/O 24 V AC/DC, 1 A
- Communication:
- Hands-free auto-voice actuation; push-to-talk, release-to-listen
- Monitor:
- 7 inch TFT LCD, WVGA
- Mounting:
- Surface wall mount
- Electrical Box:
- 3-gang box
- Material:
- Plastic
- Colour:
- White
- Operating Temperature:
- 0 to +40 deg C
- Dimensions:
- 5-1/8 in H x 9-1/16 in W x 3/16 in D
- Weight:
- 530 g
