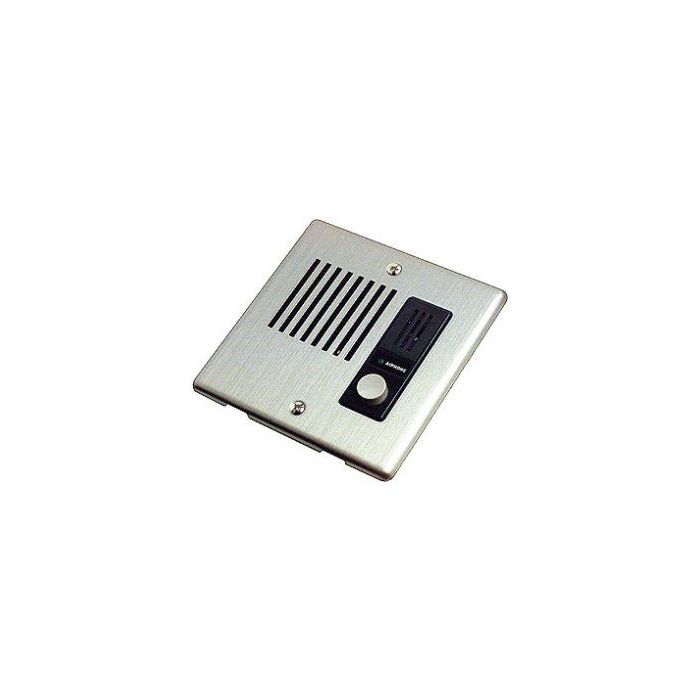

IE-JA Aiphone IE IF Series Flush Stainless Steel Audio Door Station
The IE-JA is an Aiphone IE/IF Series audio door station for flush-mounted entry communication with an inside intercom station. The door-station design provides a call button, speaker, microphone and locator LED for visitor calls at an analogue audio entry point.
It suits analogue audio entrances where a compact flush station is required with two-conductor non-polarised wiring. The station can call compatible IE or related intercom equipment by chime or tone, keeping installation simple for front entries and service doors.
Key Features
- Provides a flush audio entry point for IE/IF intercom systems.
- Call button initiates a chime or tone at the inside station for clear visitor alerting.
- Locator LED helps indicate powered door station status at the entrance.
- Two-conductor non-polarised wiring keeps retrofit-style cabling straightforward.
- Weather-resistant door-station design suits covered outdoor entry positions.
- Catalogue Family:
- INTERCOM
- Model:
- IE-JA
- Product Type:
- Intercom
- Power Source:
- Supplied by intercom or adaptor
- Calling:
- 4-tone or 2-tone chime in IE or IE-8 intercom systems
- Wiring:
- 2 conductors, non-shielded, non-polarised
- Wiring Distance:
- 150 m with 0.65 mm cable or 360 m with 1.0 mm cable
- Dimensions:
- 115 H x 116 W x 10 D mm, with 30 mm recessed depth noted
- Weight:
- 205 g
